Witty Fox WF-05 Bluetooth Module

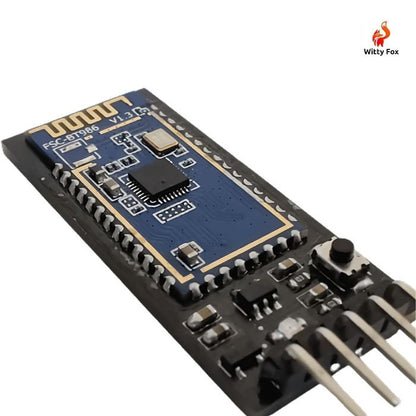

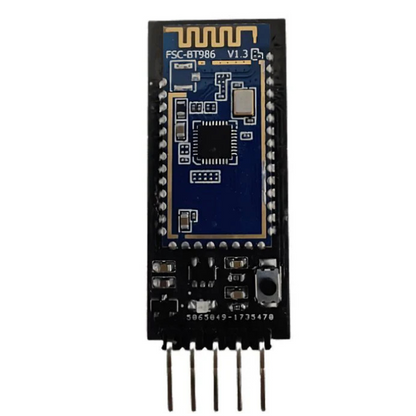

WittyFox WF-05 is a UART-based Bluetooth module capable of wirelessly communicating with devices such as your smartphones, laptops, and even other microcontrollers. The module incorporates the Feasycom BT986 Bluetooth chip which supports Bluetooth 5.2 and the latest technologies like Bluetooth Enhanced data rate (EDR) as well as Bluetooth Low Energy (BLE). It is pin-to-pin compatible with the existing and this module can easily be used to upgrade your existing projects to newer and more efficient Bluetooth technologies.
This Bluetooth module itself has an onboard LED depicting the connection status and also has a STATE pin breakout to indicate to the parent device of the Bluetooth status. It also supports a relatively wide range of input voltage of 3.6-6V with reverse polarity protection to prevent accidental damage to the module.

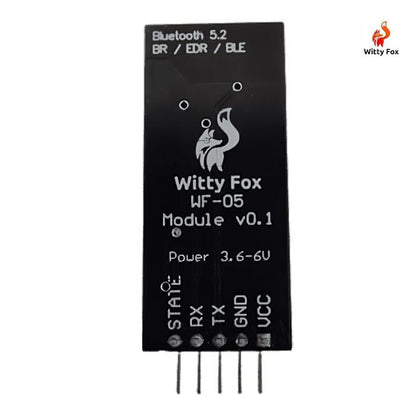

Pin Description:
- VCC: Input Power (3.6-6V)
- GND: GND
- TX: Connected to RX of the microcontroller
- RX: Connected to TX of the microcontroller
- State: Indicates the state of Bluetooth connection (HIGH – connected, LOW – not connected
If you want to use this Bluetooth module in your home automation , for that you will need few essential components like:
Applications:
- IoT Applications
- Wireless communication between phones & microcontrollers
- BLE broadcasting
- Robotics
- Home Automation
Package Includes:
- 1 x Witty Fox WF-05 Bluetooth Module
Specifications:
| Chip Brand | Fesycom |
| Chip Number | FSC-BT986 |
| Dimensions | 47x30x10mm |
| Weight | 10gm |
