Description

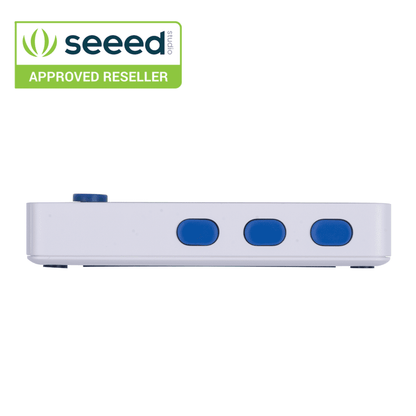

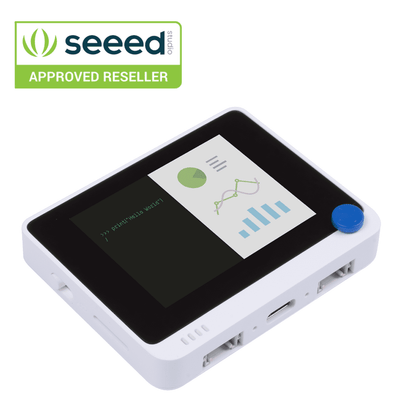

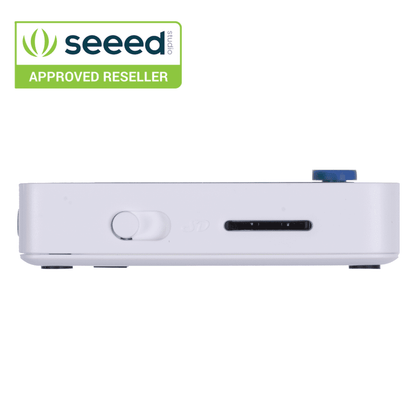

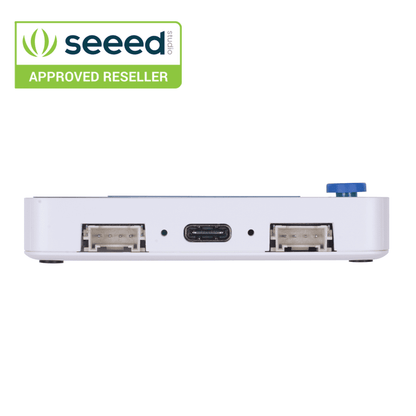

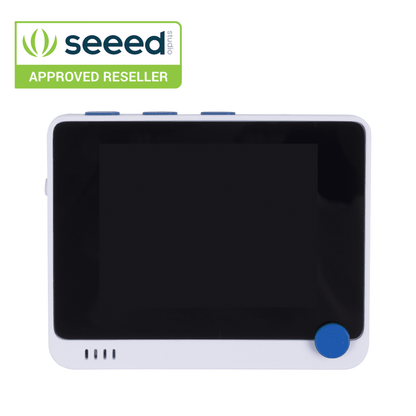

Wio Terminal Development Board
Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects.
Wio Terminal is more of a complete system equipped with a Screen + Development Board + Input/Output Interface + Enclosure, making it an efficient and Product-Ready Product. The Wio Terminal itself is equipped with a 2.4 LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm).
With Wio Terminal, you can:
- Sense and tag the Real-World data with over 300 Groves created by Seeed
- Use a 100% open-source Hardware in a pythonic way
- Build your program interpreter starting from 90% with LCD screen and compact enclosure
Features
- All-in-one development board
- Equipped with an ATSAMD51-based microcontroller
- Wireless connectivity supported by Realtek RTL8720DN
- Compatible with Arduino and MicroPython
- 2.4” LCD screen
- Onboard IMU, microphone, buzzer, microSD card slot, light sensor, and built-in magnets
- It can be used for various projects and interfacing with the real world
- Works with the standard Arduino IDE to develop applications
- Versatile board for DIY IoT projects, education, and more

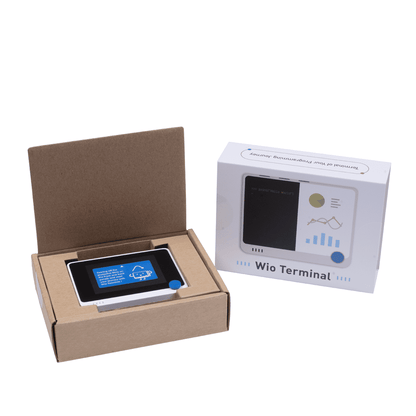

Package Includes:
- 1 x Wio Terminal Board
- 1 x User Manual
- 1 x USB Cable
Wio Terminal Board Specifications
| Core Processor | ARM® Cortex®-M4F |
| Maximum Speed | 200MHz |
| Resolution | 320×240 |
| Display Size | 2.4inch |
| Wi-Fi | 802.11 a/b/g/n 1×1, 2.4GHz & 5GHz |
| Bluetooth | Support BLE5.0 |
| Accelerometer | LIS3DHTR |
| Light Sensor | 400-1050nm |
| Infrared Emitter | 940nm |
| MicroSD Card Slot | 16GB Max |

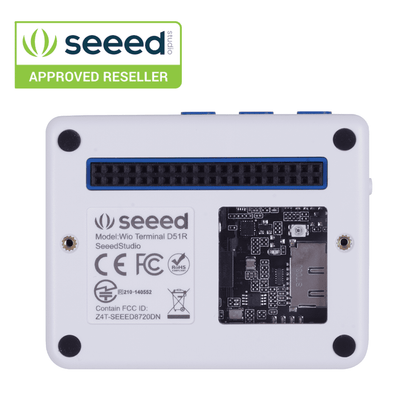

| GPIO | 40-PIN (Raspberry Pi Compatible) |
| Grove | 2 (Multifunction) |
| FPC | 20 pins |
| Dimension |
72mm*57mm*12mm |
| Weight | 100 grams |
