Wemos D1 Mini I2C Dual Motor Driver Shield

Description

Wemos D1 Mini I2C Dual Motor Driver Shield

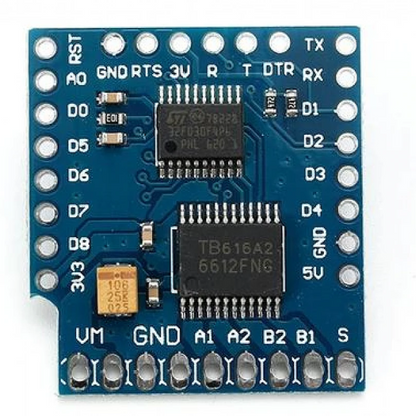

The TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield, a reliable solution for efficient motor control. With its I2C interface and 15V power supply, this shield ensures precise control and optimal performance. The versatile output current of 1.2A (average) / 3.2A (peak) caters to various motor requirements, making it perfect for diverse applications. The smart standby control features CW/CCW/short brake/stop motor control modes, providing power-saving options.

The user-friendly design includes VM and GND ports for motor power supply, guaranteeing stability. Its compact size, coupled with flexible motor control modes, makes it ideal for a range of projects. Designed for convenience, the TB6612FNG shield supports I2C mode for easy control and IO mode for added flexibility. The shield reset mode allows for quick resets via D1 Mini or DTR pin.

Manufactured with precision, this motor driver shield is suitable for both beginners and experienced users, offering efficient and reliable motor control. This motor driver shield is a must-have for enthusiasts and professionals alike. Enhance your motor control projects with the TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield.

Features:

• Interface: I2C
• Power supply voltage: VM = 15V max
• Output current: Iout = 1.2A ( average ) / 3.2A ( peak )
• Standby control to save power CW / CCW / short brake / stop motor control modes
• VM: motor power supply+
• GND: motor power supply-
• A1: Motor A A2: Motor A B2: Motor B B1: Motor B
• S: stand by control port ( In io mode )
• Standby control mode-I2C mode: control TB6612’s STBY with I2C protocol
• IO mode: control TB6612’s STBY with Spin
• Shield reset mode: short: reset with d1 mini ( reset at power on or press d1 mini’s reset button ); open: reset by DTR pin.

Package Includes:

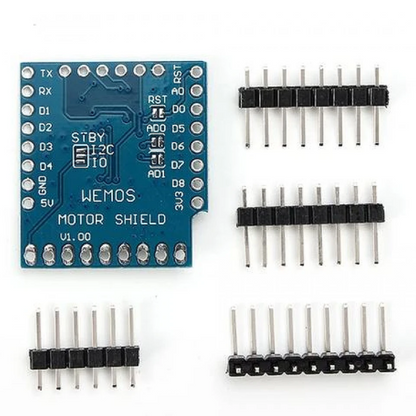

• 1 x Wemos D1 Mini I2C Dual Motor Driver Shield

Specifications:
