Description

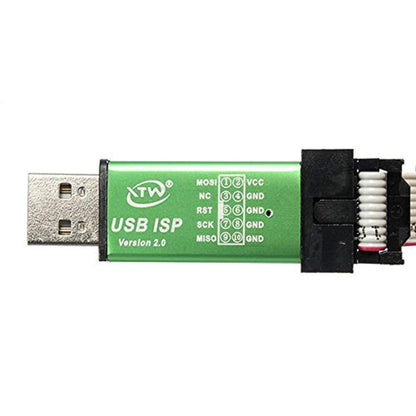

USB ISP Programmer Version 2.0
This programmer is based on Thomas Fischl’s usb asp design and connects to your computer’s USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an atmega processor and the rest is done in firmware. With 500ma over-current protection self-recovery fuse, and complete protection of expensive computer motherboard.
Designed for notebook computers, special two 3.6v regulator, a perfect match to level, get rid of the instability of hardware hidden target board power mode jumper settings. The well-configured firmware, the speed of the unique adaptive technology, stability and obtain the best balance between speed supports firmware upgrade unlimited.
Device Supporting: ATmega8 ATmega48 ATmega88 ATmega168 ATmega328 ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16 ATmega161 ATmega162 ATmega163 ATmega164 ATmega169 ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329 ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649 ATmega6490 ATmega8515 ATmega8535 Tiny Series ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85 ATtiny2313 Classic Series AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 CAN Series AT90CAN128 PWM Series AT90PWM2 AT90PWM3
Package Includes:
- 1 x USB ISP Programmer Version 2.0
Specifications:
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
