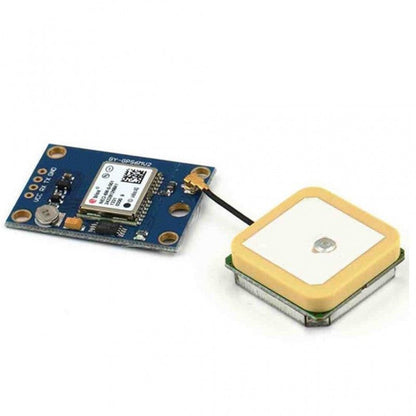

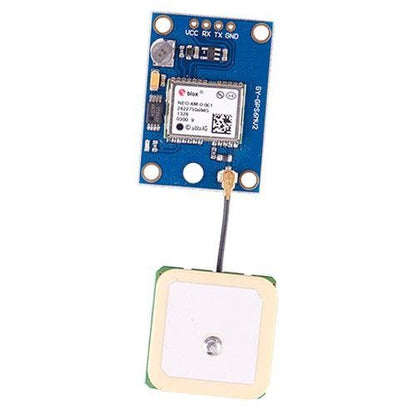

Ublox Neo-6M GPS Module With EEPROM

Description

Ublox Neo-6M GPS Module With EEPROM

The new NEO 7 series includes the Ublox Neo-6M GPS Module with EEPROM. This module is very sensitive and uses little power, giving you accurate location updates at a rate of 10Hz. It works well with Arduino, so you can get precise GPS data. It also comes with an external GPS antenna and UART TTL interfaces, plus an internal rechargeable battery for quick starts and faster GPS lock.

This UBLOX NEO-6M GPS module can save settings to EEPROM so that you do not lose your configurations. The UFL connector simplifies connecting the GPS antenna, and the built-in ceramic antenna helps in satellite detection. The power and signal lights let you know how the module is doing. With a backup battery, your data stays safe even if the power goes out.

The 3mm mounting holes make it simple to attach to your aircraft, allowing for smooth flying, automatic return home, and waypoint navigation. You can also use this UBLOX GPS module in smart robot cars to help them navigate, turning them into smart bots. Best of all, it works with the Ardupilot Mega v2 flight controller, so you can expand what your project can do!

NOTE:  This UBLOX GPS receiver Module is NOT COMPATIBLE with APM 2.8 FLIGHT CONTROLLER.

Features:

• 5Hz position update rate
• Operating temperature range: -40 TO 85°CUART TTL socket
• EEPROM to save configuration settings
• Rechargeable battery for Backup
• The cold start time of 38s and the Hot start time of 1s
• Supply voltage: 3.3 V
• Configurable from 4800 Baud to 115200 Baud rates. (default 9600)
• SuperSense ® Indoor GPS: -162 dBm tracking sensitivity
• Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Separated 18X18mm GPS antenna

Read our blog about

Pinout:

Applications:

• Connectivity between machines
• Industrial tanks
• Agricultural irrigation systems
• Manufacturing robotics

check out :

Package Includes:

• 1 x Ublox Neo-6M GPS Module With EEPROM

Specifications:
