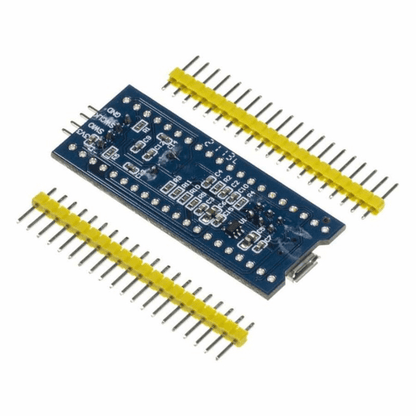

STM32F103C6T6A Board STMicroelectronics ARM Microcontrollers
The STM32F103C6T6A Board is a microcontroller development board based on the Arduino Nano size. The microcontroller has a 32-bit ARM Cortex-M3 core. It is a powerful and economical solution for those who want to improve themselves in the field of embedded systems.
The STM32F1 series is the name of the entry-mid-level microcontroller family produced by the ST company. STM32F103C6T6A is a powerful microcontroller suitable for many of your projects. You can program the board with compilers like Keil or IAR using ST-LINK.

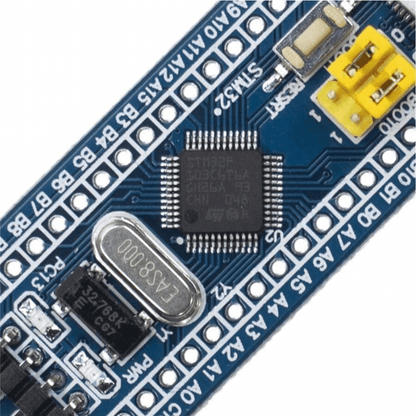

There are headers connected to microcontroller pins on the board, 3.3V-5V outputs, a USB interface, an internal SMD LED, and jumpers for operating programming mode. With its lean design, it meets the requirements of a development board. The board comes with unsoldered headers. It is an excellent starting point for those who aim to improve themselves by getting to know the ARM architecture.
Application:
- Handheld equipment
- A/V receivers and digital TV
- PC peripherals
- Gaming platforms
- E-bikes
- consumer appliances
- Printers, scanners
- Alarm systems
- Video intercoms
- HVACs
Package Includes:
- 1 x STM32F103C6T6A Board
- 2 x Headers
Specification:
| Core | ARM 32 Cortex-M3 CPU |
| Operating Voltage | 2.7V 3.6V |
| Analog Inputs | 10 (12-bit) |
| Digital IO Pins | 37 |
| Dimensions | 40x30x8mm |
| Weight | 5g |
