Description

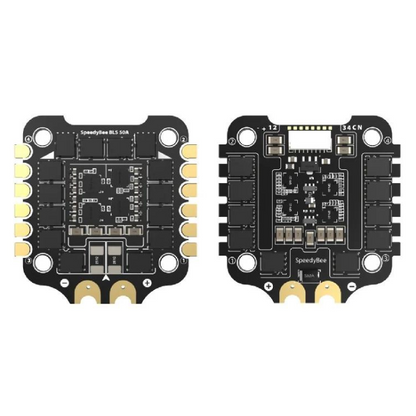

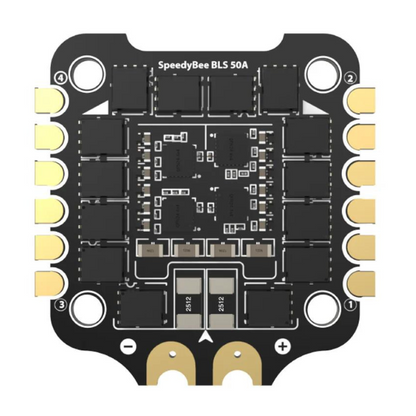

SpeedyBee F405 BLS 50A 30×30 4-in-1 ESC
Check out the SpeedyBee F405 BLS 50A 30×30 4-in-1 ESC. It comes with a great STM32F405 flight controller, better than the F411, and a handy 4-level battery indicator. You also get a 4GB Blackbox SD card slot to save your flight logs, plus four LED strip pads for cool lights.
This ESC has built-in Bluetooth, so you can set it up wirelessly with the SpeedyBee app. Its built tough with a TVS protective diode and high-quality Japan-made capacitors, plus a big 1000uF low ESR capacitor for smooth flying. It handles real 50A output, so its perfect for powerful 6S motors.
The LED indicator shows your battery level clearly, and its all at an amazing price. Ready to upgrade your drone?
Key Features:
- Built-in barometer for precise height measurement.
- SD card slot supports up to 4GB for Blackbox data.
- Dedicated DJI Air Unit connector for easy digital setup.
- Includes 9V 2A and 5V 2A individual BECs.
- Four UARTs for connecting receiver, VTX, camera, and GPS.
- Powers GPS via USB, eliminating extra heat and hassle.
- 22mm cutouts for fitting an FPV camera in compact builds.

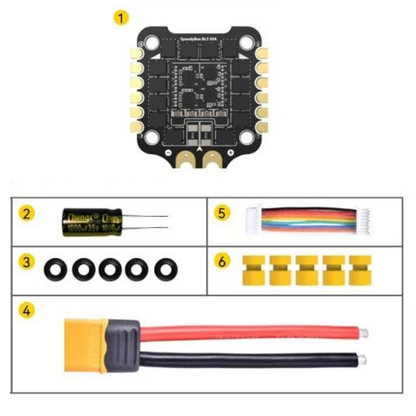

Package Includes:
- 1x SpeedyBee BLS 50A 30×30 4-in-1 ESC
- 1 x 35V 1000uF low ESR Capacitor
- 5 x M3 silicone O Ring
- 1 x XT60 Power cable(70mm)
- 1 x SH 1.0mm 30mm length 8pin cable(for FC-ESC connection)
- 5 x M3*8.1mm silicone Grommets(for ESC)
Specifications:
| Specification | Details |
|---|---|
| Item Type | Electronic Speed Controller |
| Firmware | BLheli_S |
| Continuous Current (A) | 50 |
| Wireless Configuration | Full Configuration Supported in the SpeedyBee app |
| External Capacitor (uF) | 1000uF Low ESR Capacitor (In the package) |
| Input Power (W) | 3-6S LiPo |
| Power Output Ports | VBAT |
| Current Sensor Input | Support (Scale=386 Offset=0) |
| Length (mm) | 45.6 |
| Width (mm) | 44 |
| Height (mm) | 6.1 |
| Weight (g) | 13.8 |
