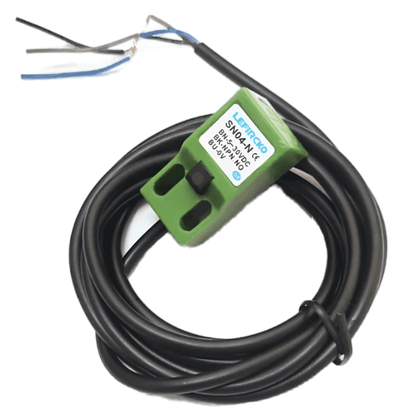

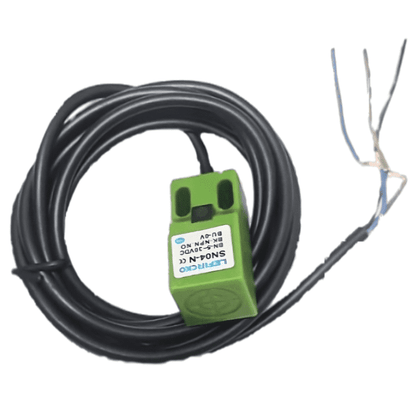

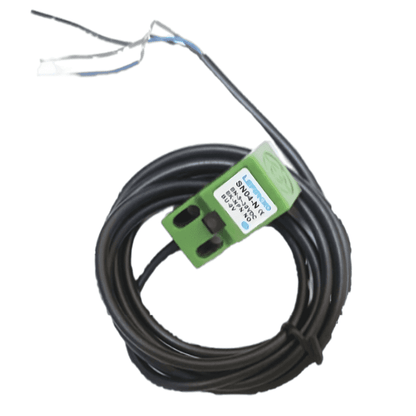

SN04-N NPN NO Distance Proximity Sensor Switch Module
The SN04-N NPN Distance proximity sensor switch module is a 5mm distance detector that will detect the presence of a metallic object within 4mm of the surface of the sensor. The distance that the switch detects may vary with respect to the size and material of the object.
This SN04-N NPN distance detector features an LED indicator and is manufactured with materials that antivibration, dust, water, and oil prevention.
Connections:
- Brown wire: 5 ~ 30 VDC (+Ve).
- Blue wire: 0 V (GND).
- Black wire: signal.
Package Includes:
- 1 x SN04-N NPN distance detector
Specifications:
| Operating Voltage | 5-30V |
| Current Consumption | 5mA (Max) |
| Detection distance | 5mm |
| Type of detection | Induction |
| Cable Length | 145 cm |
| Response Frequency | 500Hz Max |
| Dimensions | 3.6 x 1.8 x 1.8cms |
| Weight | 100 grams |
