SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors

Description

SimonK Red 30A BLDC ESC Electronic Speed Controller with Connectors

The Simonk 30A BLDC ESC for drones is an Electronic Speed Controller (ESC) that is used to drive brushless DC drone motors and is capable of supplying current up to 30A. The Simonk 30A  ESC controller is made for quadcopters and multicopters to provide faster and better motor speed control.

This High-speed 30A brushless ESC for racing drones features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery is not needed to power them. These  with fast throttle response are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

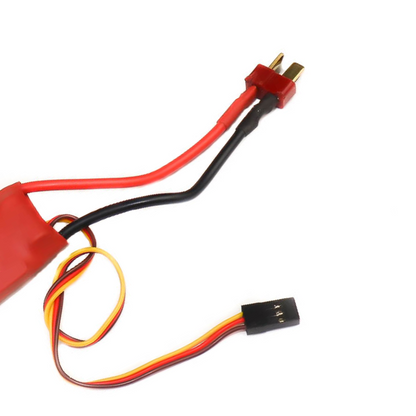

CONNECTIONS:

• Power: Red – 7.4V to 14.8V
               Black – GND
• Servo: Yellow – Throttle Input
              Red – 5V, 2Amp Out
              Brown – GND
• BLDC Motor: 3 Blue Wires – BLDC ESC Connections

Safe Power Function of the Simonk 30A ESC Motors

• High-quality MOSFETs for BLDC motor drive.
• The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve your throttle response smoothly.
• It provides low voltage protection as well as reverse polarity protection.
• This brushless motor speed controller provides protection on the 5v lines.
• High-performance heat sink for better thermal management.

Features:

• Simonk 30A Electronic Speed Controller (ESC) with connectors.

• Capable of supplying constant current up to 30A and peak current of 40A for less than 10 seconds.

• Features a battery eliminator circuit (BEC) providing 5V and 2A to the receiver or flight controller.

• Designed for use with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

• Connections: Power (Red for 7.4V to 14.8V, Black for GND), Servo (Yellow for throttle input, Red for 5V/2A output, Brown for GND), BLDC Motor (3 Blue wires).

• Throttle calibration function for adapting to different remote throttle travel differences and improving throttle response.

• Provides low voltage protection, reverse polarity protection, and protection on the 5V lines.

• Equipped with high-quality MOSFETs for BLDC motor drive.

• Features a high-performance heat sink for better thermal management.

Application:

• BLDC Motors in Quadcopters.
• Multirotor drones.
• RC Planes etc.

Package Includes:

• 1 x Simonk 30A ESC with Connectors


Specifications:
