Description

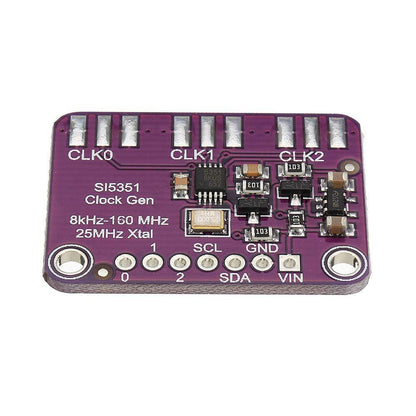

Si5351A Clock Signal Generator Module
The Si5351A generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
Pinout:

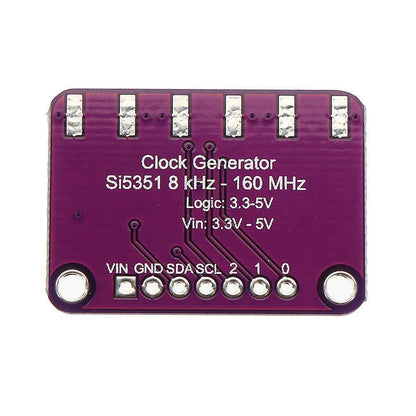

Pinout Si5351A Clock Signal Generator Module
Applications:
- HDTV, DVD/Blu-ray, set-top box
- Audio/video equipment, gaming
- Printers, scanners, projectors
- Residential gateways
- Networking/communication
- Servers, storage
- XO replacement
Package Includes:
- 1 x Si5351A Clock Signal Generator Module
Specifications:
| Model | Si5351A |
| Module Type | Clock Signal Generator Module |
| Voltage | 3-5VDC |
| Frequency | 8kHz 160MHz |
| Dimensions | 5 cm x 1.9 cm x 1 cm |
| Weight | 14g |
