Description

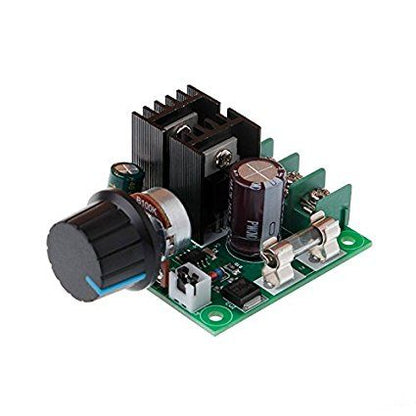

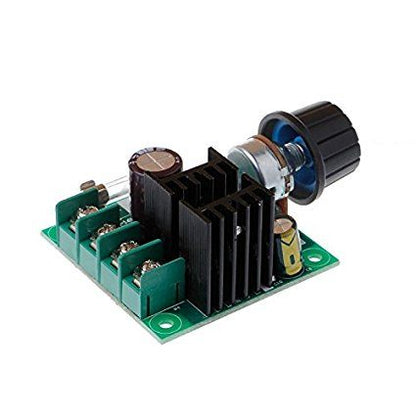

9V-50V 10A PWM DC Motor Speed Controller
This is the 9V-50V 10A PWM DC Motor Speed Controller, The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz.
Features:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
Package Includes:
1 x 9V-50V 10A PWM DC Motor Speed Controller
Specifications:
| Input supply voltage | 9V – 50V DC |
| Control Power | 0.01 500W |
| Static Current | 0.02A (Standby) |
| PWM Duty Cycle | 10% – 100% |
| PWM frequency | 13kHz |
