Pocket BeagleBone Board

Description

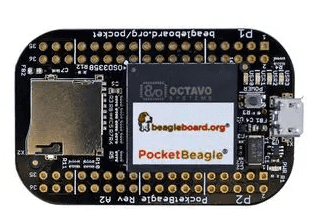

Pocket BeagleBone Board

Meet PocketBeagle – the newest and smallest member of the BeagleBoard family. PocketBeagle is a low-cost development board for hobbyists, educators, and professionals. An ultra-tiny, yet complete open-source USB key-fob computer; PocketBeagle features an incredibly slick design and is very simple to use, making it the ideal development board for beginners and professionals alike.

Also check available at Best price now!

Texas Instruments® Sitara™ AM3358 Processor (Integrated in the OSD3358-SM):

1. 1GHz ARM® Cortex-A8 with NEON floating-point accelerator
2. SGX530 graphics accelerator
3. 2x programmable real-time unit (PRU) 32-bit 200MHz microcontrollers with single-cycle I/O latency
4. ARM® Cortex-M3 for power and security management functions

Memory:

1. 512MB DDR3 800MHZ RAM (Integrated in the OSD3358-SM)
2. 4kB I2C EEPROM (Integrated in the OSD3358-SM)
3. SD/MMC Connector for microSD

Software Compatibility

1. Debian GNU/Linux images customized for BeagleBone
2. Cloud9 IDE on Node.js w/ BoneScript library
3. Any BeagleBone Black software not needing access to unavailable expansion pins

Connectivity

1. High speed USB 2.0 OTG (host/client) micro-B connector (USB0)
2. Bootable microSD card slot (MMC0)

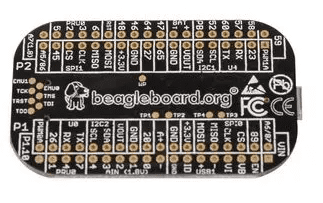

Expansion header

1. High speed USB 2.0 OTG (host/client) control signals (USB1)
2. 8 analog inputs with 6 at 1.8V and 2 at 3.3V along with 1.8V voltage references
3. 44 digital GPIOs accessible with 18 enabled by default including 2 shared with the 3.3V analog input pins
4. 3 UARTs accessible with 2 enabled by default (UART0, UART4)
5. 2 I2C busses enabled by default (I2C1, I2C2)
6. 2 SPI busses with single chip selects enabled by default (SPI0, SPI1)
7. 4 PWM outputs accessible with 2 enabled by default (PWM0A, PWM1A)
8. 2 quadrature encoder inputs accessible
9. 2 CAN bus controllers accessible
10. 23 programmable real-time unit (PRU) 32-bit microcontroller I/O pins including options for the PRU UART and eCAP accessible with 7 I/O pins enabled by default for PRU0 and 1 enabled by default for PRU1
11. 3 voltage inputs with 1 for battery, 1 shared with the USB connector and 1 for power-line input and a battery temperature sense input
12. 2 voltage outputs, 1 with a 3.3V LDO and 1 with switch from voltage input
13. Power and reset button I/Os

Power management:

1. TPS65217C PMIC is used along with a separate LDO to provide power to the system (Integrated in the OSD3358) with integrated 1-cell LiPo battery support

Debug Support:

1. JTAG test points
2. gdb and other monitor-mode debug possible

Power Source

1. micro USB connector
2. expansion header (3 options: battery, VIN or USB-VIN)

User Input / Output

1. Power Button with press detection interrupt via TPS65217C PMIC (hold for 10s to initiate hardware power cycle)

Applications:

• Electronics Design
• Hobby & Education
• IoT (Internet of Things)
• Embedded Design & Development

Package Includes:

1 x Pocket Beagle Bone Board

Specifications:
