PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

Original price was: ₹633.00.Current price is: ₹337.50.

SKU: C1225-422528 Category: Tags: ,

Description

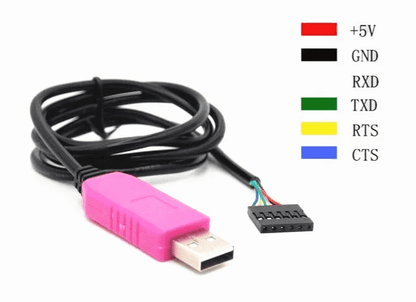

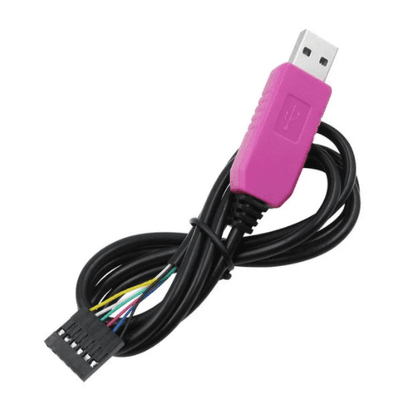

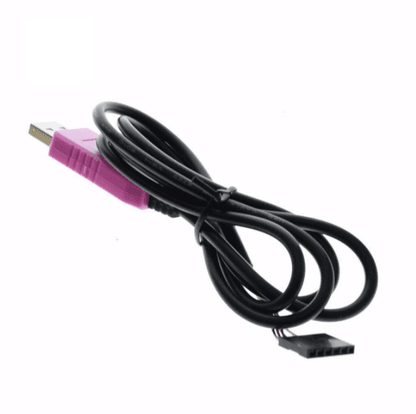

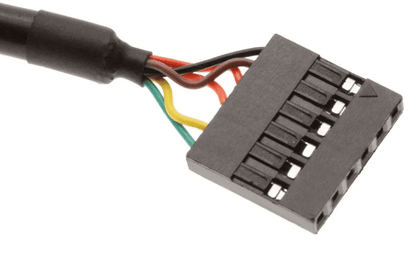

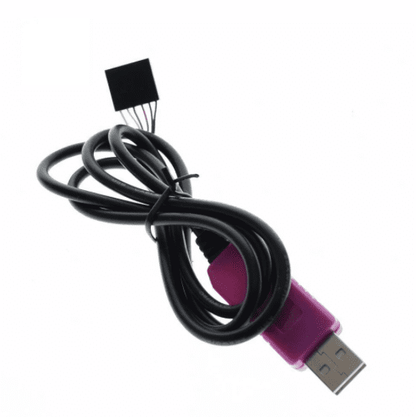

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable is a low-cost and high-performance USB-to-Serial Bridge Controller. It can provide a convenient solution for connecting an RS-232. In addition, it is useful for the full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host.

The PL-2303HXD‘s highly compatible drivers could simulate the traditional COM port on most operating systems. So it allows the existing applications based on COM port to easily migrate and be made USB ready. This product is designed for laboratory, product testing, low-cost MCU communications, and other applications.

Features:

  • Interface: USB to RS232 TTL
  • Chipset: PL2303HXD by Prolific Technology
  • Compatibility: Works with Windows XP/Vista/7/8/8.1 and Android OTG
  • Baud Rate: Programmable from 75 bps to 12 Mbps
  • Flow Control: Supports hardware and software flow control
  • Power Supply: Provides +5V power output
  • Cable Length: Typically around 1 meter
  • Compliance: Full compliance with USB Specification v1.
  • RS422/RS485 Interface: Supports RS422/RS485 interface
  • LED Indicators: Includes LED indicators for power and data transmission status

Applications :

  1. Single-chip upgrade solution for Legacy RS232 devices to USB interface
  2. USB to RS232 converters/cables/dongles
  3. Healthcare/Medical USB Interface Data Transfer Cable
  4. Personal Infotainment/Media Player Docking USB Interface
  5. Cellular/PDA USB Interface Data Transfer Cable
  6. Serial-over-IP Wireless Solution
  7. USB Barcode/Smart Card Readers
  8. GPS/Navigation USB Interface
  9. Point-of-Sale (POS) Terminals/Printers
  10. PC Docking Station/Port Replicators
  11. Industrial/Instrumentation/Automation Control USB Interface
  12. USB Modem/Wireless/Zigbee USB Interface

Package Includes:

1 x PL2303HXD 6Pin USB TTL RS232 Convert Serial Cable

Specifications:

Input Supply voltage

3.3 ~ 5 V

Connector type

USB To TTL RS232

Total cable length

80cm

Weight

32gm
