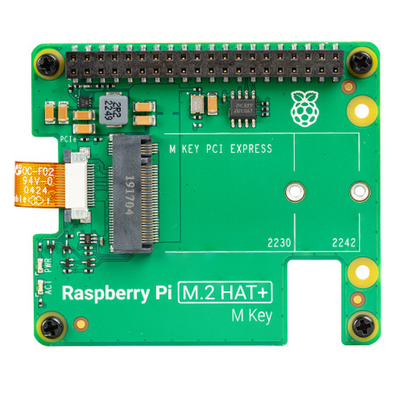

Official Raspberry Pi M.2 HAT+
The Raspberry Pi M.2 HAT+ connects M.2 peripherals like NVMe drives and AI accelerators to the Raspberry Pi 5s PCIe 2.0 interface, supporting data transfers up to 500 MB/s. The Raspberry Pi HAT+ features a 16-pin FPC connector and supports M.2 M key devices in 2230 and 2242 form factors. With up to a 3A power supply, it enhances performance for demanding applications. The Raspberry Pi M.2 HAT+ is auto-detected by Raspberry Pi software and comes with a 16mm stacking header and spacers for easy installation with the Active Cooler.
Key Features
- High-Speed Data Transfer: The M.2 HAT+ offers lightning-fast data transfer speeds of about 450 Mbytes/s thanks to its 4 Gbits/s PCIe 2.0 interface. Connecting NVMe SSD drives and other PCIe devices is therefore perfect, guaranteeing quick access to huge datasets, seamless multimedia streaming, and effective data processing.
- Compliance with HAT+ Specifications: The M.2 HAT+ is compatible and integrates seamlessly with your Raspberry Pi 5 because it complies with the HAT+ specification. It is the ideal complement to your Raspberry Pi system because of its standardization, which ensures dependable performance and user-friendliness.
- Automatic Detection: The M.2 HAT+ is automatically identified and configured using the most recent Raspberry Pi firmware and software. Because of its plug-and-play capability, complicated setup processes are no longer necessary, freeing you time to concentrate on your projects.

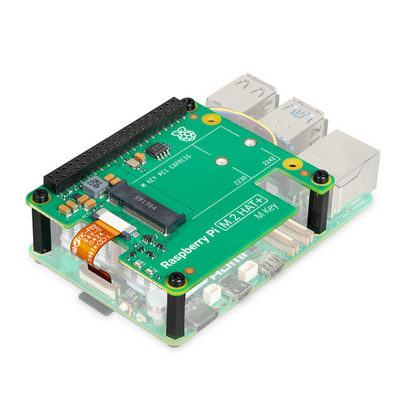

- Complete Installation Kit: The M.2 HAT+ is easy to install even with the Active Cooler on your Raspberry Pi 5 thanks to its 16mm stacking header, spacers, and screws. This well-considered design keeps your Raspberry Pi cool and functional while enhancing its functionality.
Package Includes
1 x Official Raspberry Pi M.2 HAT+
Specifications
| Specification | Details |
|---|---|
| Item Type | HAT |
| Model Type | Pi M.2 HAT+ |
| Interface | Single-lane PCIe 2.0 (500 MB/s peak transfer rate) |
| Device Compatibility | M.2 M key devices, 2230 or 2242 form factor |
| Power Supply | Up to 3A to connected devices |
| LEDs | Power and activity LEDs |
| Specification Compliance | Raspberry Pi HAT+ specification |
| Included Accessories | Ribbon cable, 16mm stacking header, threaded spacers and screws, knurled double-flanged screw |
