Description

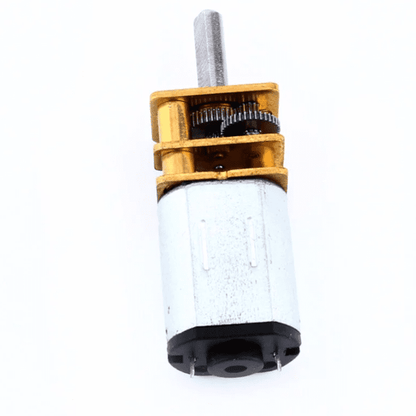

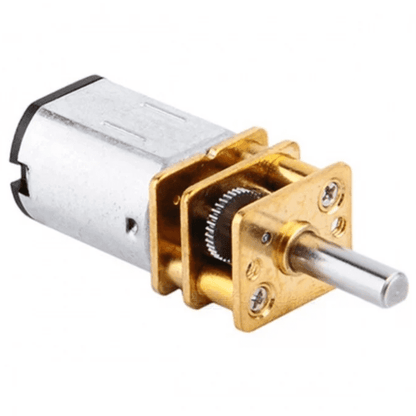

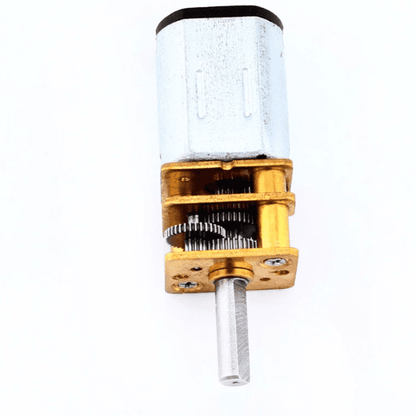

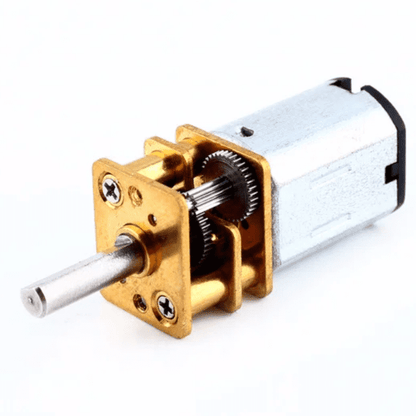

N20 shaft motor 600 RPM – 12V
The N20-12V-600 RPM Micro Metal is a compact yet powerful motor with all-metal gears that are durable and resistant to wear and tear. It can serve as an excellent replacement for a rusty or damaged DC geared speed reduce motor on a machine. This motor is commonly used in a variety of applications such as boats, cars, electric bicycles, fans, and home appliances.
The N20 Micro Gear 12V 600 RPM DC Motor (High Torque) is a lightweight motor with high torque and low RPM. Equipped with a gearbox assembly, it can significantly increase the torque of the motor. The motor’s cross-section measures 10 × 12 mm, while the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. Due to its compact size, this Micro Gear Motor is ideal for use in small-scale applications with limited space. It can be easily connected to wheels to drive heavy loads from one location to another.
Features:
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motors output shaft.
Package Includes:
1 x N20 shaft motor 600 RPM – 12V
Specifications:
| No Load Current (mA) | 0.06 A |
| Rated Torque(kg-cm) | 0.18 |
| Stall Current (A) | 0.75 |
| Rated Operating Voltage (VDC) | 12 |
| Operating Voltage (VDC) | 6 ~ 12 |
| Weight (gm) | 12 |
