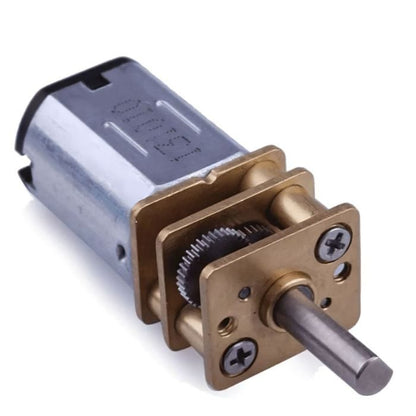

N20 150 RPM DC Motor for Robotics High Torque
This N20 6v 150 RPM Metal Gear Micro DC Motor with Precious Metal Brush is a light weight high torque motor suitable for a variety of industrial and hobby applications as well. This is equipped with an all metal gearbox assembly which provides an amazing torque for this size of the motor. Also the brushes used in the motor are metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.
The N20 motor is ideal for small IIOT (Industrial IOT) products like electric lock, webcam pan tilt and other similar actuator products which need good torque in limited space and in less weight. For the hobby segment products like robotic cars, micro mouse, electric boat and all small motor related projects, where power consumption is a concern along with optimal pricing, the N20 all metal gear motor is a perfect fit.
Package Includes:
- 1 x N20 150 RPM DC Motor for Robotics High Torque
Specifications:
| Model No | GA12 N20 |
| Motor Type | Center Shaft DC Geared Motor |
| RPM | 150 |
| Rated Voltage | 6V DC |
| No Load Current | 10 mA |
| Rated Current | 20 mA |
| Stall Current | 1 A |
| Rated Torque | 0.10 Kgcm |
| Stall Torque | 0.80 Kgcm |
| Shaft Type | D-type Single Side |
| Shaft Diameter (mm) | 3mm |
| Shaft Length (mm) | 9mm |
| Weight (gm) | 10 |
