Description

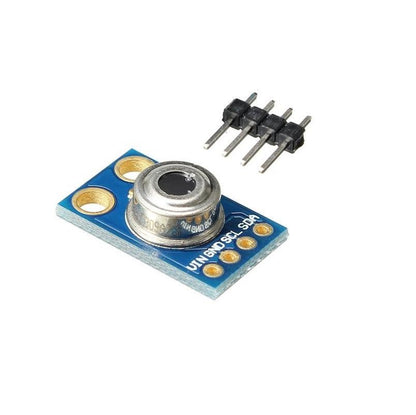

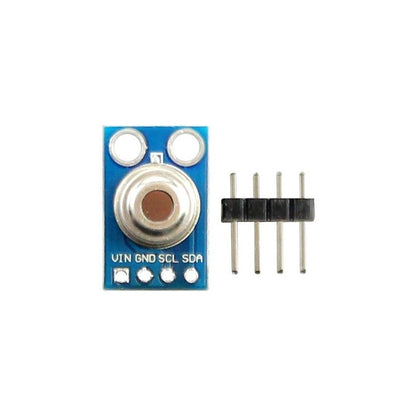

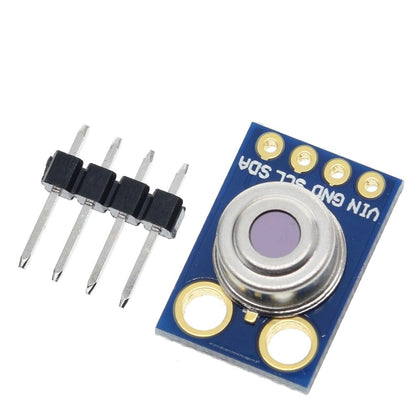

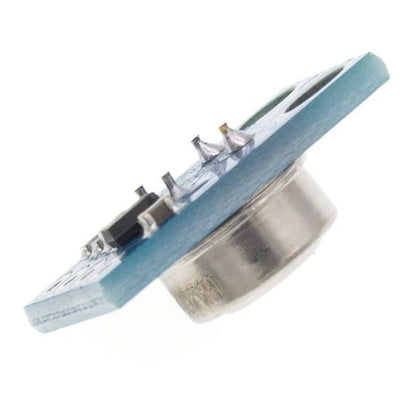

MLX90614ESF Infrared IR Temperature Sensor Module
The MLX90614ESF is an infrared thermometer for non-contact temperature measurements. Both the IR-sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can.
Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
The user can configure the digital output to be PWM. As a standard , the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.
Read our blog on and explore how infrared sensors work.
Features:
- Infrared temperature measurement, no contact is needed.
- 0.14°C accuracy with 17-bit ADC and DSP.
- PWM output for -20°C to 120°C range.
- Operates on 3.3V-5V with 2mA current.
- I2C communication, microcontroller compatible.
- Combines a signal-filtering ASIC with a thermopile detector.
- Incorporates the IR-sensitive thermopile detector chip and signal
- Conditioning ASIC into a single TO-39 container.
Package Includes:
- 1 x MLX90614ESF Infrared IR Temperature Sensor
Specifications:
| Operating Voltage | 3.3-5V |
| Operating Current | 2 mA |
| Communication protocol | I2C |
| Dimensions | 2 x 2 x 1cms |
| Weight | 5 grams |
