Description

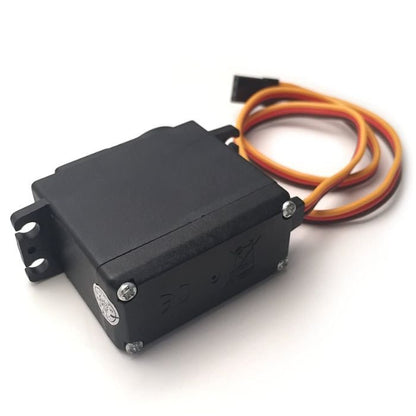

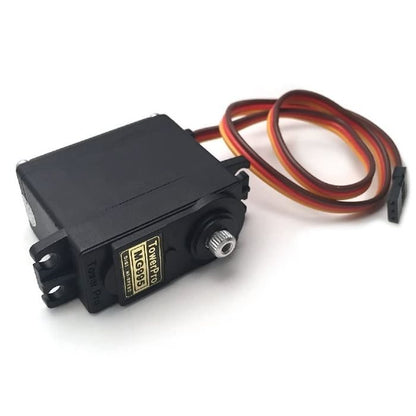

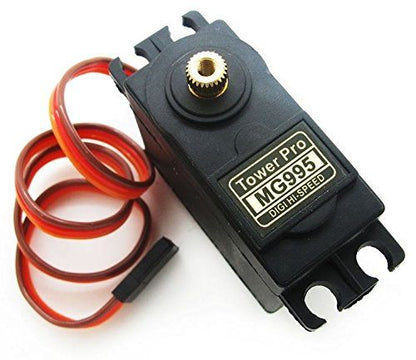

MG995 High Speed Servo Motor(180 Degree)
The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it a 180° servo motor. It receives and processes PWM signals faster and better. You can control this servo motor with .
It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. This TowerPro MG995 Metal Gear Servo Motor provides a high torque of 10 kg/cm (4.8V) and 12 kg/cm (6V).
It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
Need a Heavy-Duty Servo? Get the Now!
Features:
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Applications:
- RC robot
- Airplane control
- Robot arm
- Remote Control toys
Package Includes:
- 1 x MG995 High-Speed Servo Motor
Specifications:
| Specification | Value |
|---|---|
| Operation Voltage | 4.8 – 7.2 Volts |
| Operating Angle | 120 degrees |
| Stall Torque (4.8V) | 10 kg/cm |
| Stall Torque (6.0V) | 12 kg/cm |
| Operating Speed (4.8V, no load) | 20 sec / 60° |
| Operating Speed (6.0V, no load) | 16 sec / 60° |
| Dimensions (mm) | 40.7 × 19.7 × 42.9 mm |
| Weight | 55 g |
