Description

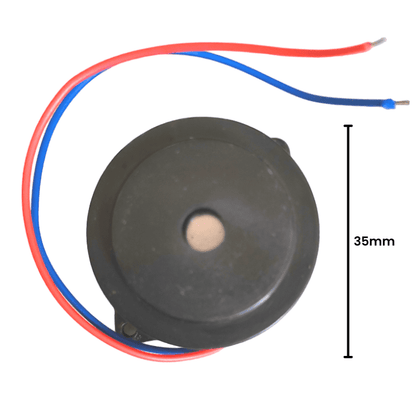

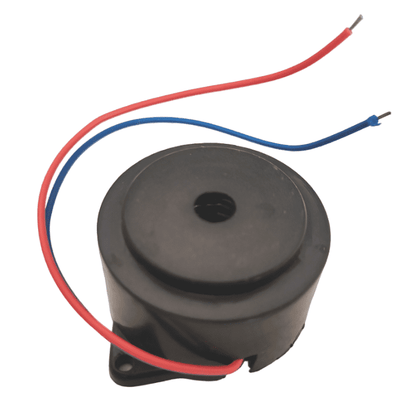

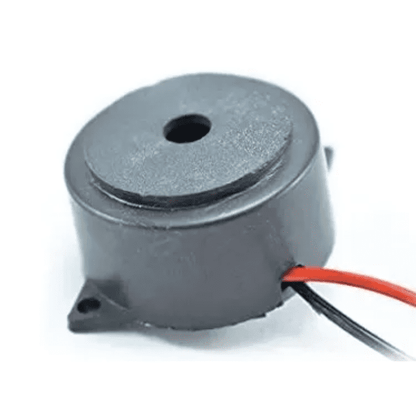

MB35M – 35mm Musical Buzzer
An audio signaling device like a beeper or buzzer may be electromechanical or piezoelectric or mechanical type. The main function of this is to convert the signal from audio to sound. Generally, it is powered through DC voltage and used in timers, alarm devices, printers, alarms, computers, etc. Based on the various designs, it can generate different sounds like alarm, music, bell & siren.
Applications:
- Electrical alarms
- Educational purposes
- Security applications
- Electronic Metronomes
- Household applications
- Communication Devices
Package Includes:
- 1 x MB35M – 35mm Musical
Specifications:
| Minimum sound level | 90db |
| Oscillation frequency | not applicable |
| Current consumption | Maximum 20mA |
| Operating voltage | 5 to 15 VDC |
| Tone | Musical |
| Mounting | Flange Type |
| Wire/Lead length | 120mm 2 wire |
| Height | 24.5mm |
| Diameter | 35mm |
| Pitch | 47.5mm |
| Operating temperature range | 20 to 50 °C |
