7805 Voltage Regulator IC
The 7805 voltage regulator IC is a three-terminal voltage regulator . A 7805 voltage regulator with a fixed output voltage is used in various applications. This is available through various packages like SOT-223, TO-263, TO-220, and TO-3. Among these, the TO-220 is the most used one.
The IC 7805 is available in the TO220 package. It employs built-in current limiting, thermal shutdown, and safe operating area protection which makes them virtually immune to damage from output overloads.
7805 voltage regulator, although designed primarily as a fixed voltage regulator can also be used with external components for adjustable voltages and currents. With adequate heatsinking, they can deliver more than 0.5A output current.
read more:
Features:
- Three-terminal positive voltage regulator IC
- Available in TO220 package
- Built-in current limiting, thermal shutdown, and safe operating area protection
- Primarily designed as a fixed voltage regulator
- It can be used for adjustable voltages and currents with external components
- Can deliver over 0.5A output current with adequate heatsinking
Know why the is essential in electronics.

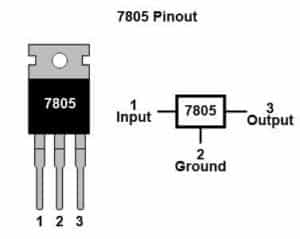

Pinout:
Applications:
- Local (on-card) regulators
- IoT
Also, check the with an operating output voltage of 12V.
Package Includes:
- 1 x 7805 Voltage Regulator IC
Specifications:
| Input voltage | 7v to 25v |
| Output voltage range | 4.8 v to 5.2v |
| Typical output voltage | 5v |
| Maximum output current | 1.5A |
| Dimensions | 30 x 10 x 5 mm |
| Weight | 2g |
