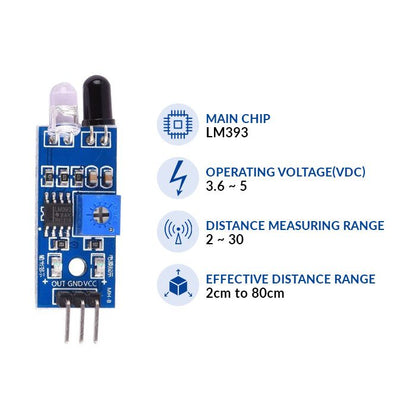

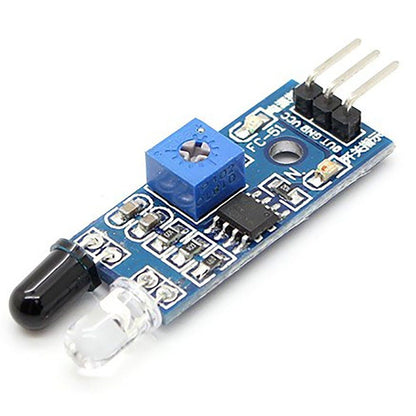

IR (Infrared) Obstacle Avoidance Sensor Module

Description

IR Proximity Sensor

The IR Proximity Sensor has a distance range of 2cm to 30cm and it is ideal for obstacle detection, line tracking, and more.

It is designed for easy setup and has onboard detection indication to verify its status. A preset knob allows you to fine-tune the distance range for more accurate readings.

This IR Sensor is best for IoT projects, such as creating automatic sanitizer dispensers and home automation systems.

This infrared sensor is suitable for various applications in industrial, automotive, and consumer electronics settings. This sensor offers unbeatable value for money while ensuring optimal accuracy and efficiency in all your projects.

The detection range of the infrared proximity sensor can be adjusted by the potentiometer.

Read our blog .

Enjoy our free shipping on orders above Rs 500/- within India.

Features:

• Easy to assemble and use
• Onboard detection indication
• The effective distance range of 2cm to 30cm
• A preset knob to fine-tune distance range
• If there is an obstacle, the indicator lights on the circuit board.

Infrared Sensor Applications:

• IP cameras
• Alarm systems and other crime prevention devices
• Battery-driven human presence sensors for IoT smart homes
• IR sensors are also used in IR imaging devices, optical power meters, sorting devices, remote sensing, flame monitors, moisture analyzers, night vision devices, infrared astronomy, etc.

Infrared Sensor Diagram:

The IR proximity sensor circuit diagram consists of the following components:

• LM358 IC
• Resistors in the kilo-ohm range
• 2 pairs of IR transmitter and receiver
• LED
• Variable resistors

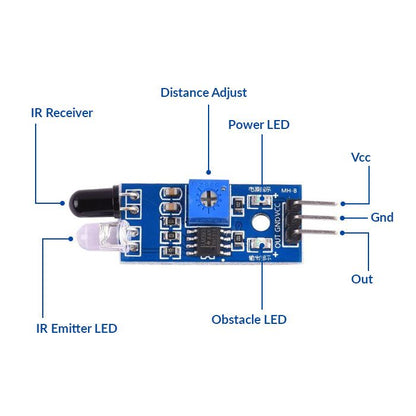

IR sensor pinout

Package Includes:

• 1 x IR Proximity Sensor

Specifications
