Description
Intermediate Digital Electronics Kit
The Intermediate Digital Electronics kit consists of a plethora of logic gate ICs along with buttons and LEDs which can be used to give input to the gates and visualize their outputs.
It is an Intermediate level Electronic Components Starter kit that includes all essential components for DIY electronics projects. This kit includes everything you’ll need to get started with your prototype projects.
Led[Light-emitting diode]:
is an abbreviation for light-emitting diode. LED lighting products use up to 90% less energy than incandescent light bulbs. An electrical current flows through a microchip, illuminating the tiny light sources known as LEDs, resulting in visible light.
Breadboard:
A (also known as a plug block) is used to create temporary circuits. It is beneficial to designers because it allows components to be easily removed and replaced. It is useful for someone who wants to build a circuit in order to demonstrate its operation and then reuse the components in another circuit.
Breadboard Power Supply:
The 3.3V/5V has a multi-purpose female USB socket as well as dual 5 V and 3.3 V power rails. The 3.3V/5V Breadboard Power Supply Module is designed to fit snugly into a standard 400 or 800 tie-point breadboard.
Multimeter:
A is a measuring device that can measure a variety of electrical properties. A typical multimeter can measure voltage, resistance, and current, and is also known as a volt-ohm-milliammeter (VOM) because it includes a voltmeter, an ammeter, and an ohmmeter.
Resistor:
A is a component of an electronic circuit that limits or regulates the flow of electrical current. Resistors can also be used to supply a fixed voltage to an active device such as a transistor.
IC [Integrated Circuit]:
The is a small electronic device made of semiconductor material that contains many microscopic elements like diodes and transistors. Capacitors and resistors.
Jumper Wire:
A is an electric wire used for connecting remote electric circuits on printed circuit boards. It is possible to short-circuit and short-cut (jump) to the electric circuit by connecting a jumper wire to the circuit.
Hi-Watt 9V Battery:
The most common and portable 9V battery is the . It is non-rechargeable and provides a high-capacity, low-cost solution for a wide range of electronic devices. This battery provides a high-capacity and low-cost solution for a wide range of electronic devices. It is used in conjunction with its own . The battery clip can be used to power LEDs or other devices using a 9V battery. It’s used in electronic toys, clocks, walkie-talkies, smoke alarms, hand-held test equipment, digital instruments, transistor radios, and other applications.
Micro Pushbutton:
The is a small and inexpensive single pole single-through switch (SPST) that can be soldered on a printed circuit board (PCB). When pressed, this push button closes a circuit and is typically used as a reset button.
Note: The package dimensions are 22x15cms and weigh about 50 grams.
Applications:
- Can be used to build flip-flops,
- Can be used to build a Shift register
- Can be used to build Mux and demux circuits and other combinational circuits.

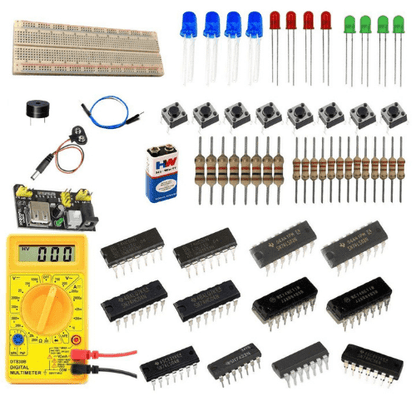

Package Includes:
- 4 x LED Red
- 4 x LED Blue
- 4 x LED Green
- 1 x Bread Board – Full Size
- 1 x Buzzer- Goli

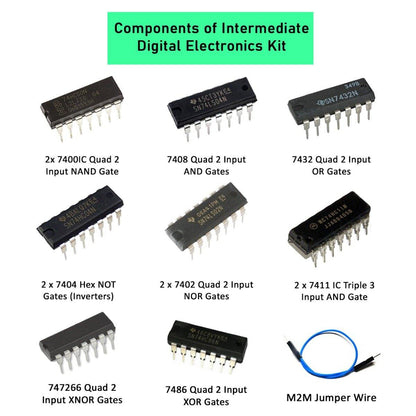

- 2 x 7400 Quad 2 input NAND gates
- 2 x 7402 Quad 2 input NOR gates
- 2 x 7404 Hex NOT gates (Inverters)
- 1 x 7408 Quad 2 input AND gates
- 2 x 7411 IC triple 3-input AND gate
- 1 x 7432 Quad 2 input OR gates
- 1 x 7486 Quad 2 input XOR gates
- 1 x 74266 Quad 2 input XNOR gates
- 1 x M2M Jumpers
- 1 x 9V Battery

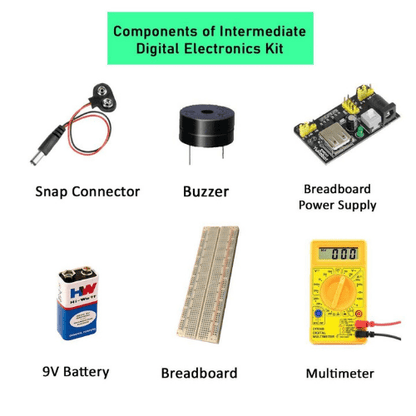

- 1 x Breadboard Power Supply
- 1 x DC barrel jack
- 8 x Micro push button

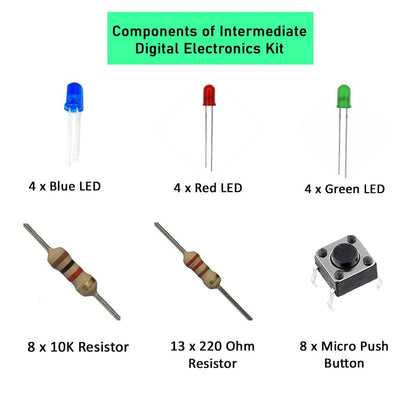

- 8 x 10K resistors
- 1 x Multimeter
- 13 x 220-ohm resistor
Specifications:
| Battery Voltage | 9v |
| Dimensions | 22x15cms |
| Weight | 50g |
