Description

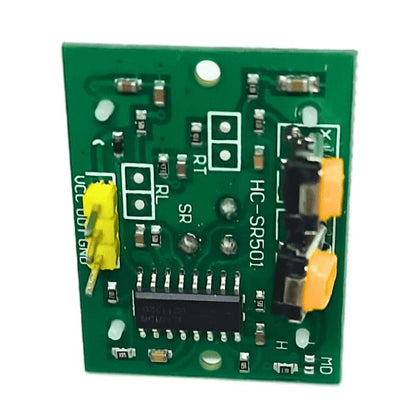

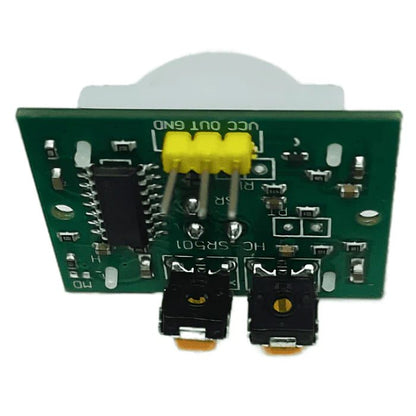

HCSR501 PIR Motion Sensor
The HC-SR501 PIR Motion Sensor Module allows you to sense motion. It is almost always used to detect the motion of a human body within the sensors range. It is often referred to using PIR, Pyroelectric, Passive Infrared and IR Motion Sensor sensors. The PIR Motion sensor module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens.
The PIR Sensor has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Repeat Trigger Selection Jumper is also available. Compatible with Arduino, Raspberry Pi, AVR, PIC, 8051, etc.
Check out our entire range of
Applications:
- Automatically sensing light for Floor, bathroom, basement, etc
- Automatically sensing light for porch, warehouse, Garage, etc
Package Includes:
- 25 x HCSR501 PIR Motion Sensor

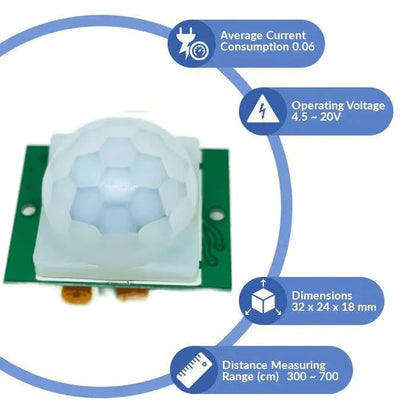

Specifications:
| Model | HCSR501 |
| Operating Voltage | 4.5 ~ 20V |
| Average Current Consumption (mA) | 0.06 |
| Distance Measuring Range (cm) | 300 ~ 700 |
| Dimensions | 32 x 24 x 18 mm |
| Weight | 15 grams |
