F18468-70 NEO-7M 7M GPS Module with Compass for APM2.5 2.6 2.8

Description

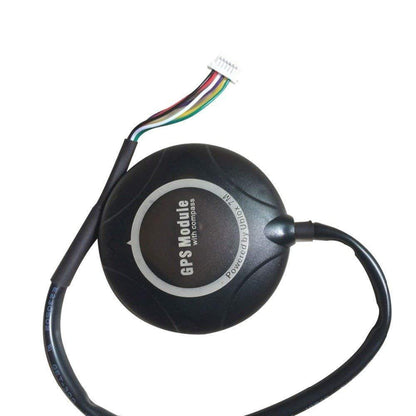

NEO-7M GPS Module with Compass

The NEO 7 series introduces a remarkable GPS module with a built-in compass, known as the NEO-7M. It is a highly sensitive and energy-efficient module, featuring 56 channels that deliver precise position updates at an impressive rate of 10Hz. Encased in moulded plastic, this GPS module offers exceptional protection against various environmental factors, making it an excellent choice for aircraft and quadcopter applications.

Equipped with an active circuitry ceramic patch antenna, the Neo 7M GPS module ensures superior GPS signal reception, surpassing the performance of its predecessors in the Neo 6 series. Moreover, it incorporates a rechargeable backup battery for HOT starts, allowing for quick and convenient initialization. Additionally, an I²C EEPROM is integrated into the module to store essential configuration settings.

Out of the box, this comes preconfigured to operate at a baud rate of 38400, specifically tailored for compatibility with APM/Pixhawk systems. The package includes two cables: a 6-pin connector designed for the GPS module itself, and a 4-pin connector dedicated to the i2c compass.

Features:

• Supports GPS, GLONASS, Galileo, and QZSS Multi-GNSS engine
• The maximum update rate of up to 10 Hz
• Moulded plastic case for protection against the elements
• Suitable for aircraft or quadcopter use
• High-sensitivity, low-power GPS module
• 56 channels for precise position updates at 10Hz
• Includes an HMC5883L digital compass
• Rechargeable backup battery for HOT starts
• I²C EEPROM to store configuration settings
• 0.6 meters accuracy
• Comes with a mounting stand and moulded plastic case
• Main chip: U-BLOX NEO-7M
• Supply voltage: 3.5 ~ 5.5V
• Navigation update rate: 5Hz

Applications:

• RC Vehicles
• Quadcopter

Package Includes:

• 1 x NEO-7M GPS Module with Compass

Specifications
