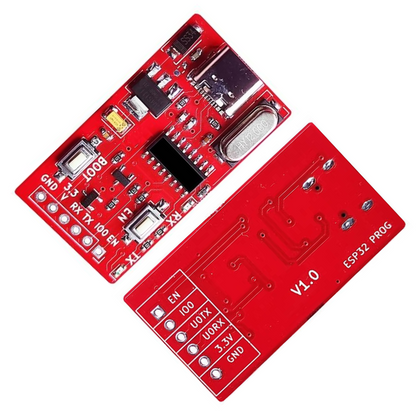

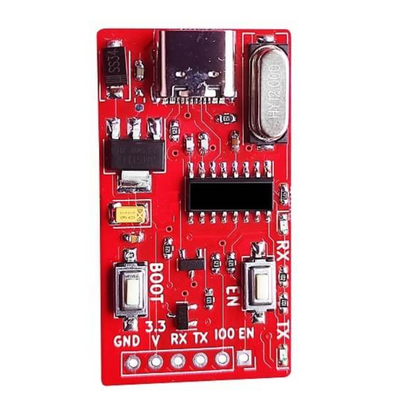

ESP32 & ESP8266 USB Programmer Rev1.0 With Auto Boot
If you want to simplify your development and debugging tasks, the ESP32 & ESP8266 USB Programmer Rev1.0 with Auto Boot is here to help. This handy tool makes it easy to download firmware and handle serial communication on ESP32 platforms. All you need is a single USB cable to connect to your PC, and it automatically recognizes the board and its functions. Its designed to make your setup smoother and more efficient, so you can focus on what you do best.
Pinout details:
- GND
- 3.3V DC (100mA Max.)
- RXD
- TXD
- Io0/Boot/DTR
- EN/Reset/RTS
Package Includes:
- 1 x ESP Prog ESP32 & ESP8266 USB Programmer With Auto Boot-Rev1.0
- 1 x 6 Pin Male Header
- 1 x 6 Pin JST Male Connector
- 1 x 6 Pin JST Female Connector with Wire
Specifications:
| Specification | Details |
|---|---|
| Serial Chip | CH340 |
| Buttons | Boot, EN/RST |
| Interface | USB Programmer |
| USB Connector | C Type |
| Connector Type | Female Connector for ESP32 series Board |
| LED Indicators | On-Board RX and TX LEDs |
| Input Voltage | 5V |
| Operating Temperature | -20°C to 85°C |
| Output Pin Pitch | 2.54mm |
