Description

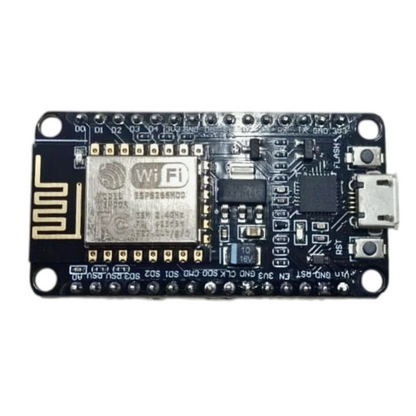

ESP12F ESP8266 Amica NodeMCU Wifi Module
A great set of tools to develop ESP8266. NodeMCU is built based on the mature ESP8266 technology to take advantage of the abundant resources available on the web. NodeMCU has -12-based serial WiFi integrated onboard to provide GPIO, PWM, ADC, I2C, and 1-WIRE resources at your fingertips, built-in USB-TTL serial with super reliable industrial strength CH340 for superior stability on all supported platforms.
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or offload all Wi-Fi networking functions from another application processor.ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during run-time. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy a minimal PCB area.
is an open-source IoT platform. It includes firmware that runs on the ESP8266 Wi-Fi SoC from Espressif Systems, and hardware that is based on the ESP-12 module. The term NodeMCU by default refers to the firmware rather than the dev kits. The firmware uses the Embedded C scripting language.
Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like! The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as a client and access point) and TCP/IP stack with DNS support as well.
Pinout:
Difference Between ESP12E and ESP12F:
| Features | ESP12E | ESP12F |
| Frequency Range | 2.412 – 2.484 GHz | 80 MHz and 160 MHz |
| PWM | Yes | Yes |
| ADC | 1 channel | 10-bit ADC |
| Wireless Network Type | STA / AP / STA + AP | STA/AP/STA+AP |
| Security Type | WEP / WPA-PSK / WPA2-PSK | WPA/WPA2 |
| Operating Voltage | 3.3V | 3.3V |
| Onboard PCB Antenna | Yes | Yes |
| Operating Temperature | -40 C to +125 C | 40 C to +125 C |
| Output Power | 72.2Mbps: 16.5dBm typical & 11b: 20.5dBm typical | 72.2Mbps: 15dBm typical & 11b: 18.5dBm typical |
The Major difference between ESP12E and ESP12F is that ESP12E has Relatively poor transmission power than ESP12F.
Applications:
- To set up wireless communication between two applications
- Mobile phone-controlled robots
- Home automation System
- IoT Projects
- Data Sharing
- Weather station
- Wireless control systems
- Security ID tags
Package Includes:
- 1× ESP12E Amica NodeMCU
Specifications:
| Max Input Voltage | 3.3V |
| Digital Pins | 11 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
