Description

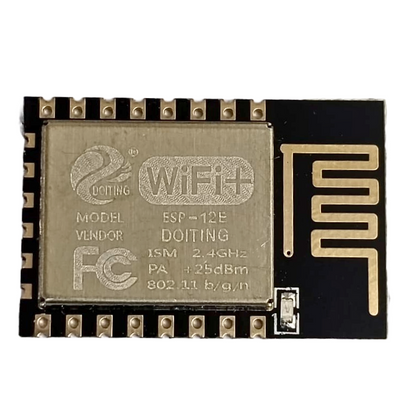

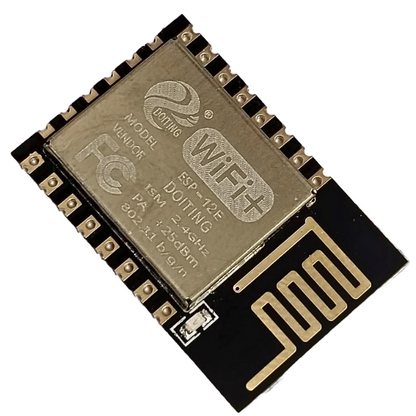

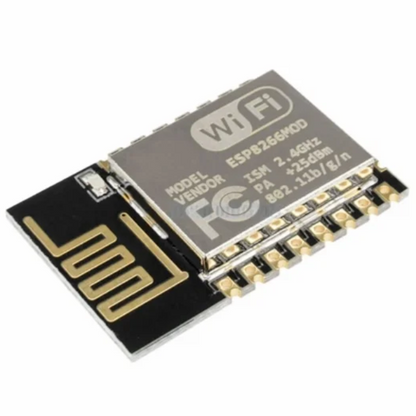

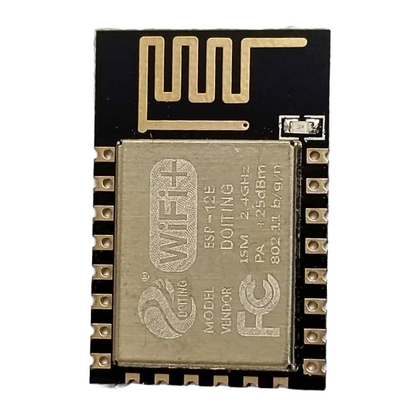

ESP12E ESP8266 Wireless Transceiver Module
The ESP12E ESP8266 is a highly integrated chip designed for the needs of a new connected world. This offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or offload all Wi-Fi networking functions from another application processor.
It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIOs. ESP8266 is a low-cost Wi-Fi chip with a full TCP/IP stack and MCU (Micro Controller Unit) capability.
ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.
The ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy a minimal PCB area.
ESP12 Pinouts:

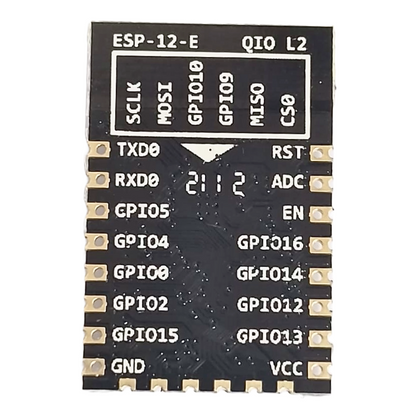

ESP12E ESP8266 Wireless Transceiver Pinout
Features:
- WS2812 Led on board.
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier, and matching network
- Integrated PLL, regulators, DCXO, and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- An integrated low-power 32-bit CPU could be used as an application processor
- SDIO 1.1 / 2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
- Access Point and Station Modes.
Applications:
- Home Automation
- Smart Plugs and Lights
- Industrial Wireless Control
- Baby Monitors
- IP Cameras
- Wearable Electronics
- Security ID Tags
Package Includes:
- 1 x ESP12E ESP8266 Wireless Transceiver Module
Specifications:
| Frequency Range | 2.412 – 2.484 GHz |
| Serial Transmission | 110 – 921600 bps |
| Wireless Network Type | STA / AP / STA + AP |
| Security Type | WEP / WPA-PSK / WPA2-PSK |
| Operating Voltage | 3.3V |
| Operating Temperature | -40ºC to +125 ºC |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
