Description

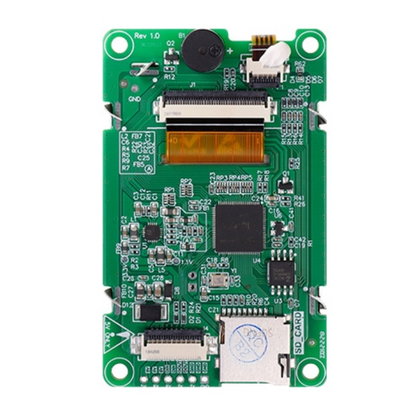

Elecrow 2.4 inch HMI touch display 240*320 TTL serial screen
Elecrow presents the Wizee 2.4-inch HMI Touch Display, a reliable solution for industrial, medical, and various other applications.
With a fast 400M SOC processor, this screen ensures quick performance from the moment it powers on. Its versatility shines through the support for various configuration controls, meeting a wide array of user needs.
Designed to medical grade standards and subjected to rigorous testing, the Wizee display guarantees exceptional quality and reliability.
Users can enjoy the convenience of visual programming and reduced communication frequency with LUA script support.
Despite its powerful performance, this display maintains low power consumption, making it suitable for extended usage.
With support for rotation mount displays, installation is hassle-free. The high-resolution 240×320 screen ensures clarity and detail in every display.
Features:
- Easy to use, power up and run
- Using the 400M SOC processor, the screen runs faster, and it can run after power on
- Support a variety of configuration controls, and conventional configuration controls meet 95% of users’ need
- High reliable quality, designed with medical standards and passed several strict tests
- Support JPEG, and PNG image compression
- Support visual programming, what you see is what you get
- Support LUA script programming to reduce communication frequency
Package Includes:
- 1x 2.4 inch HMI touch screen
- 1x 10pin cable
- 1x FPC1.0-10P
- 1x 0.8m USB to RS-232 Cable
- 1x Debug board
Specifications:
| Core Processor | 400M SOC Processor |
| Scripting Language | LUA Script |
| Size | 2.4 inch |
| Resolution | 240×320 |
| Installation Direction | Supports 0°, 90°, 180°, and 270° rotation |
| Storage | 8MB Flash |
| RAM (DDR SDRAM) | 32MB |
| Communication Method | TTL |
| Communication Baud Rate | 1200-921600bps |
| Communication Connector | FPC1.0-10P |
| Real Time Clock (RTC) | Not supported |
| Active Area (AA) | 49.0mm x 36.7mm |
| Product Size (LxWxH) | 76.3mm x 47.2mm x 11.9mm (MAX, including TP) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Voltage | 5V |
| Music Player | Not supported |
| Audio Connector Specifications | None |
| Video Playback | MP4 video format |
| TFT LCD | Yes |
| Backlight Type | LED |
| Brightness | 350 cd/m² |
| Backlight Life | >20,000 hours |
| Contrast | 250:1 |
| Perspective (L/R/T/B) | 45°/45°/45°/20° |
| Touch Panel | Resistive touch screen |
