Description

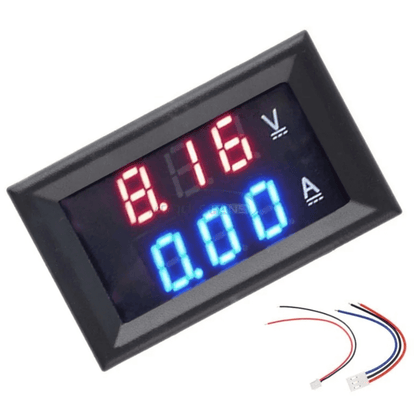

Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)

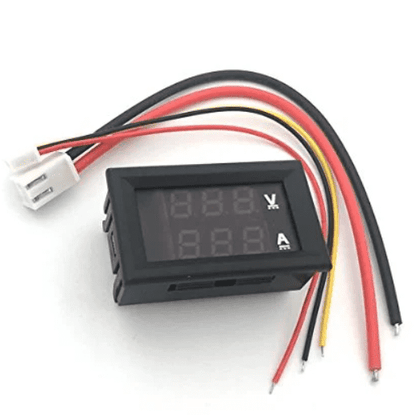

This is Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses.
One harness is to provide power for the , thats the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning
Note : Shunt resistor is not included with this product
Features:
- Runs on 5V power supply.
- Shows voltage in red and current in blue.
- Requires less than or equal to 60mA of current.
- Can measure from 0V to 100V DC.
- Capable of measuring current from 0A to 100A.
- Provides accuracy of ±1% (plus or minus 1 digit).
- Operates effectively in temperatures ranging from -10°C to 65°C.
- Updates readings every 500 milliseconds for real-time monitoring.

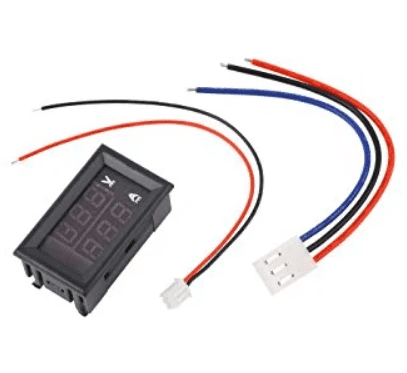

Package Includes:
- 1 x Digital Voltmeter & Ammeter Module
- 1 x Two wire-thin connector
- 1 x Three wire-thin connector
Specifications:
|
Operating Voltage |
5V |
|
Input Current |
<= 60mA |
|
Display Colour |
Red (Voltage), Blue (Current) |
|
Measuring Voltage Range |
0V to 100V DC |
|
Measuring Current Range |
0A to 100A |
|
Measurement Accuracy |
1%( ± 1 digit) |
|
Minimum Voltage Resolution |
0.1V |
|
Minimum Current Resolution |
0.01A |
|
Working Temperature |
-10 ° C ~ 65 ° C |
|
Dimensions |
50x30x20mm |
|

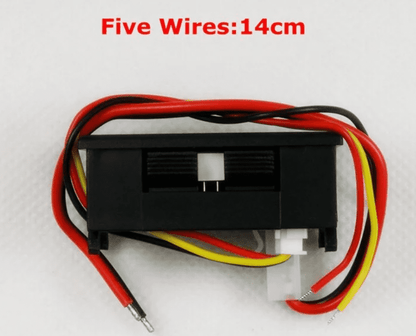

Working temperature: Cable length |
14cm |
|
Refresh rate |
500mS / times |
|
Weight(gm) |
14 |
