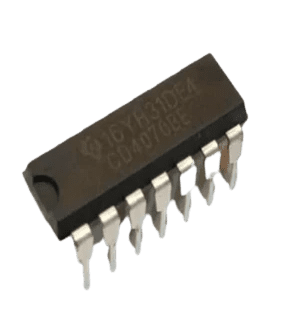

CD4070 – Quad 2-Input Exclusive-OR (XOR) Gate IC
The CD4070 contains four independent Exclusive OR gates inside a single package. It is oftentimes referred to as a quad package 2-Input XOR gate IC. All four gates share the same power rail and each gate has two input lines and one output line. This IC gives the system designer a way to directly implement the Exclusive-OR Boolean function. The CD4070 makes use of complementary MOS (CMOS) transistors to achieve a broad power supply operating range, low power consumption, and a high noise margin. The IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5.
check out :
Pinout:
Pinout Of CD4070 IC
| Pin Name | Pin # | Type | Description |
|---|---|---|---|
| VDD | 14 | Power | Supply Voltage (+3 to +15V) |
| GND | 7 | Power | Ground (0V) |
| A1 to A4 | 1, 5, 8, 12 | Input | Inputs A of the four XOR gates |
| B1 to B4 | 2, 6, 9, 13 | Input | Inputs B of the four XOR gates |
| Q1 to Q4 | 3, 4, 10, 11 | Output | Outputs from the four XOR gates |
Package Includes:
Selected qty of IC – CD4070
Specifications:
| LOGIC Circuit | XOR |
| Voltage Rating | 3V to 15V |
| Propagation Delay (tpd) | 280ns |
| Noise immunity | 0.45 VDD |
| Inputs | 2 |
