CD4011 – Quad 2-Input NAND Gate IC
The CD4011 is a quad package 2-Input NAND gate (Integrated Circuits). That is, it has four NAND gates inside a single package and each gate has two input lines and one output line. All the inputs and outputs are buffered and this improves transfer characteristics by providing a very high gain.
The CD4011 IC operates at 5V, 10V, 15V, and even 20V. When operating at 5V the maximum low-level input voltage is 0.5 and the minimum high-level input voltage is 4.5. All four gates share the same power rail but can operate independently.

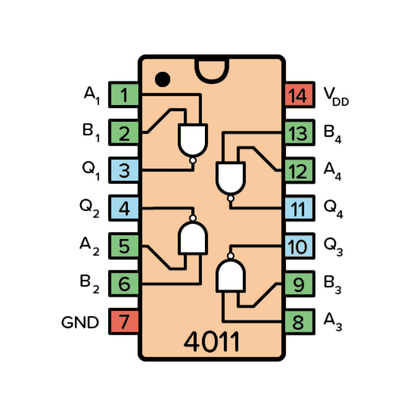

Pinout:
Pinout Of CD4011 IC
PACKAGE INCLUDES:
Selected qty of IC – CD4011
Specifications:
| Operating Voltage | 5V |
| Low-Level Output Current | 1.5mA |
| Propagation Delay Time | 60ns |
| Operating Temperature Range | – 55 C to + 125 C |
