Description

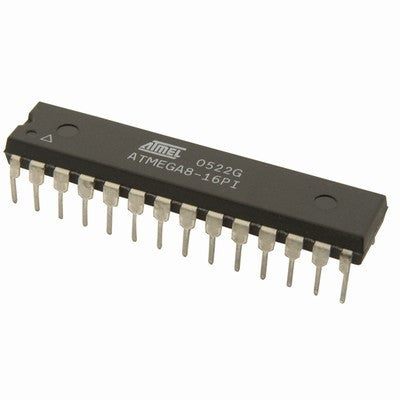

ATmega8
The ATmega8A IC is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8A achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed. The has 16 KB programmable flash memory, static RAM of 1 KB and EEPROM of 512 Bytes. The endurance cycle of flash memory and EEPROM is 10,000 and 100,000, respectively.

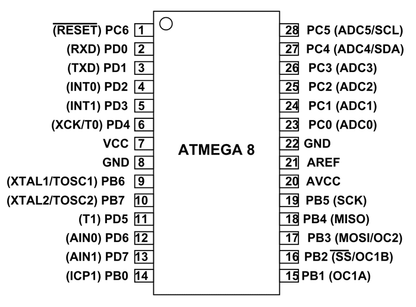

Pinout:
Applications:
- Home automation
- Industrial automation
- Robotics
- Automotive
- Medical devices
- Communication devices
Also check , a high-performance, low-power 8-bit AVR RISC-based microcontroller by Atmel. It features 32KB of programmable flash memory, 2KB SRAM, 1KB EEPROM, an 8-channel 10-bit A/D converter, and a JTAG interface for on-chip debugging. The device supports a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts.
Package Include:
- 1 x ATmega8 IC
Specifications:
| Package/Case |
PDIP-28 |
| Minimum Supply Voltage (V) |
2.7 |
| Maximum Supply Voltage (V) |
5.5 |
| Product Type |
8-bit Microcontrollers MCU |
| Product Series |
AT89x |
| Maximum Clock Frequency (MHz) |
16 |
| Data Bus Width |
8 bit |
| Interface Type |
SPI, TWI, USART |
| Program Memory Size (kB) |
8 |
| Data RAM size and Type |
1KB SRAM |
| Data ROM Size and Type |
512-B EEPROM |
| No. of Timers/Counters |
3 Timer |
| Operating Temperature Range (°C) |
-24 to 84 |
| Dimensions |
34.8 x 7.5 x 4.57mm |
| Weight |
2g |
