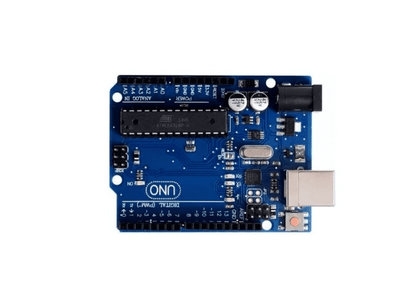

Uno R3 Board compatible with Arduino
This board is based on and fully compatible with Arduino Uno R3. In addition to all the features of the previous board, the Uno R3 now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers are needed for Linux or Mac (info file for Windows is needed and included in the Arduino IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.
The Arduino Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF which allows the to adapt to the voltage provided from the board. The other is not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.
If you want to use this Uno R3 Board compatible with Arduino in your small or DIY projects, for that you will need few essential components like
Comparison of Arduino Uno Boards:
|
Specification |
|
|
|
| Microcontroller | ATmega4809 | ATmega328P (SMD) | ATmega328P (Through hole) |

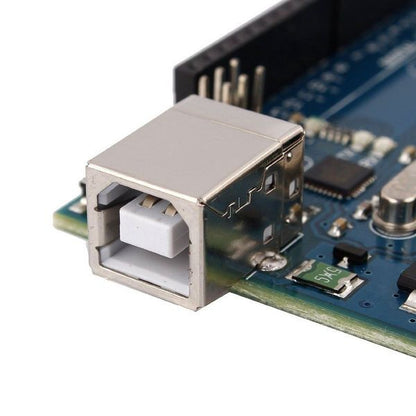

| USB connector | Micro-USB | USB-B | USB-B |
| Digital I/O Pins | 14 | 14 | 14 |
| Analog input pins | 6 | 6 | 6 |
| PWM pins | 5 | 6 | 6 |
| UART | Yes | Yes | Yes |
| I2C | Yes | Yes | Yes |
| SPI | Yes | Yes | Yes |
| I/O Voltage | 5V | 5V | 5V |
| Input voltage (nominal) | 7-12V | 7-12V | 7-12V |
| DC Current per I/O Pin | 20mA | 20 mA | 20 mA |

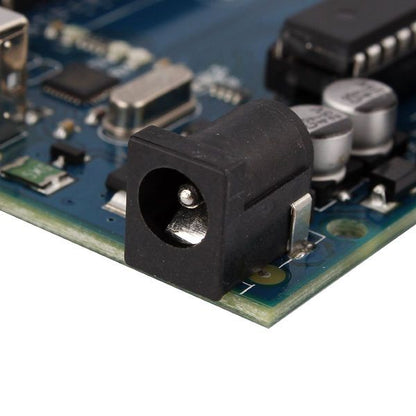

| Power Supply Connector | Barrel Plug | Barrel Plug | Barrel Plug |
| clock speed | 16 MHz | 16 MHz | 16 MHz |
| USB-Serial chip | ATmega16U2 | CH340 | ATmega16U2 |
| SRAM | 6.144KB | 2KB | 2KB |
| Flash Memory | 48KB | 32KB | 32KB |
| EEPROM | 256 Bytes | 1KB | 1KB |
| Dimensions | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm |
| RADIO MODULE | u-blox NINA-W102 | – | – |
| Inertial Measurement Unit | LSM6DS3TR (3D accelerometer) | – | – |
| LED_BUILTIN | 25 | 13 | 13 |
| Wi-Fi Microprocessor | Yes | – | – |
APPLICATIONS:
- Arduino Music Instrument
- Robot Car
- Fingerprint door lock
- Home Automation
- Security systems
Package Includes:
- 25 x UNO R3 Board
Specifications:
| Microcontroller | ATmega328 |
| Input Voltage | 7-12V |
| Operating Voltage | 5V |
| Digital I/O Pins | 14 |
| Analog Inputs | 6 |
| Flash Memory | 32K |
| Clock Speed | 16MHz |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
