Description

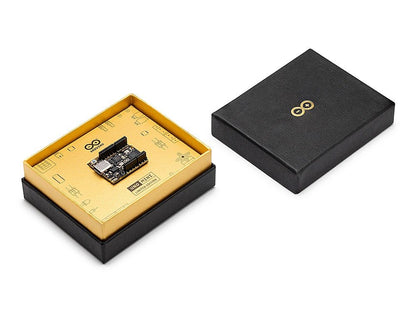

Arduino UNO Mini (Limited Edition)
Arduino UNO Mini Limited Edition is a collectors item for serious Arduino Lovers like hobbyists, students, makers, reimaginers, dreamers, hopers, fans, engineers, designers, questioners, cake-makers, problem-solvers, puzzlers, gamers, debaters, developers, entrepreneurs, architects, future-shapers, musicians, scientists.
This limited edition celebrates our most iconic board and all of the amazing projects that the community has created over the years

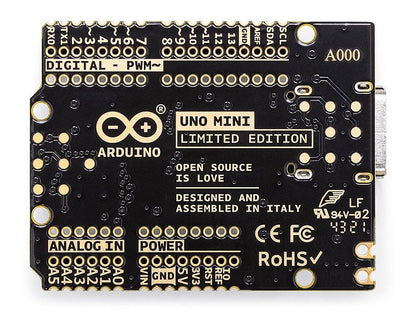

The Arduino UNO Mini LE is a microcontroller board based on the ATmega328P. It has 14 digital inputs/outputs (six of which can be used as PWM outputs), six analog inputs, a 16MHz ceramic resonator, a USB-C connector, and a reset button. This contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable, use a power adapter, or connect a battery to get started.
Package Includes:
- 1 x Arduino UNO Mini (Limited Edition)
Specifications:
| Microcontroller | ATmega328P |
| USB Connector | USB-C |
| Built-In LED Pins | 13 |
| Digital I/O Pins | 14 |
| Analog Input Pins | 6 |
| PWM Pins | 6 |
| UART | Yes |
| I2C | Yes |
| SPI | Yes |
| Operating Voltage | 5V |
| Input Voltage | 6-12V |
| Battery Connecter | None |
| DC Current Per I/O Pin | 20mA |
| DC Current for 3.3V Pin | 50mA |
| Main Processor | ATmega328P 16 MHz |
| USB-Serial Processor | ATmega16U2 16 MHz |
| Memory | 2KB SRAM, 32KB FLASH, 1KB EEPROM |
| Dimensions | 26.70 x 34.20mm |
| Weight | 8.05gm |
