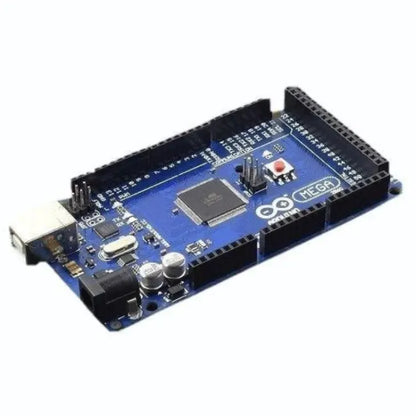

Arduino MEGA 2560 Atmel R3 compatible Board

Description

Arduino MEGA 2560 Atmel R3 Board compatible with Arduino

The Arduino Mega 2560 R3 is an open-source precise Successor to the Arduino Mega based on the ATmega2560 SMD chip. The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allows the shields to adapt to the voltage provided from the board. The other is not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

This Board has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Using the board is also very easy, simply connect it to a computer with a USB cable or power it with a DC adapter or battery to get started. The Mega 2560 R3 board is designed for Arduino/Genuino Uno and the former boards Duemilanove or Diecimila.

Check out Affordable for beginners & experts.

Also check .

Key Features:

• Features the microcontroller ATmega2560.
• 54 digital I/O pins are included (15 PWM outputs).
• Four UARTs and sixteen analog inputs allow for smooth connection.
• Allows for modern Arduino/Genuino Uno shields.
• Perfect for projects requiring a large amount of I/O capability and prototyping.
• Includes an ICSP header, reset button, USB connectivity, and crystal oscillator operating at 16 MHz.

Package Includes:

1 x MEGA 2560 Atmel R3 Board compatible with Arduino

Specifications:
