AC8265 Wireless NIC for Jetson Nano

Description

AC8265 Wireless NIC for Jetson Nano

This is an AC8265 Wireless NIC for Jetson Nano, WiFi / Bluetooth. The module is used to receive signals through NIC. NIC allows both wired and wireless communications. NIC allows communications between computers connected via a local area network (LAN) as well as communications over the large-scale network through Internet Protocol (IP). This module contains two antennas that are used to attract the signals.

This is a dual-mode wireless NIC module applicable for Jetson Nano, which supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.

How to connect the Wireless NIC to the NVIDIA Jetson Nano?

• Remove the two screws on Jetson Nano, and detach the jetson nano.

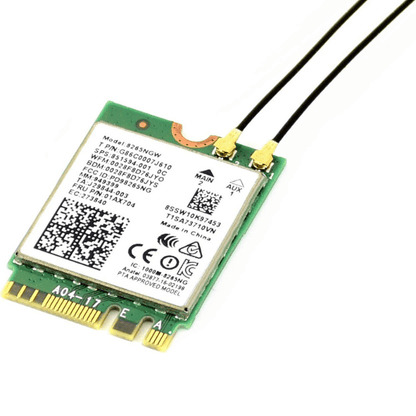

• Connect the extension cable to wireless AC8265 on the IPEX connector and tighten the nuts.

• Remove the NIC screw onboard, and insert the wireless AC8265 into the socket.

• Insert the jetson nano into the socket and screw it again.

Features:

• Chip: Intel 8265AC
• Bands: 2.4GHz / 5GHz
• Speed: 300Mbps / 867Mbps
• WiFi protocol: 802.11ac
• Bluetooth version: 4.2
• NIC interface: NGFF (M.2)
• Antenna interface: IPEX connector
• Antenna Dimensions (L x D) : 190 x 13 mm
• Supported OS: Linux, Windows 10/8.1/8/7

Package Includes:

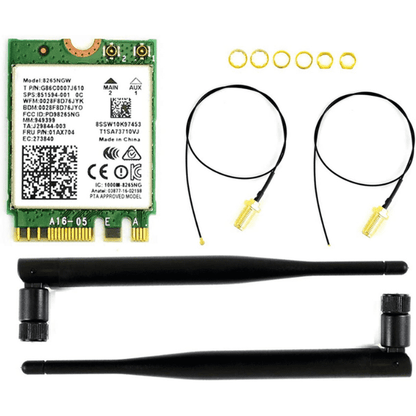

• 1 x AC8265 Wireless NIC for Jetson Nano Set

Specifications:
