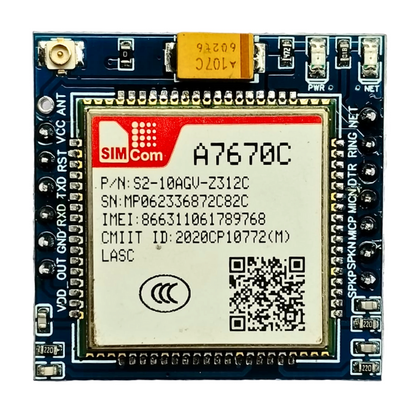

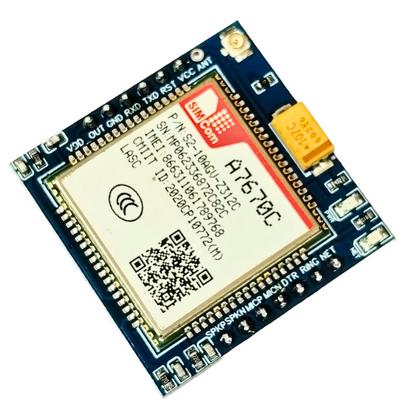

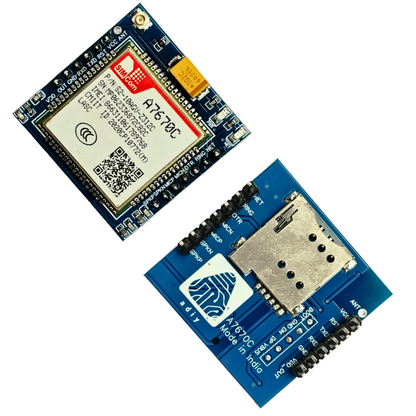

A7670C GSM 4G Breakout Board – ADIY

Description

A7670C GSM 4G Breakout Board – ADIY

The A7670 series is the LTE Cat 1 module that supports wireless communication modes of LTE-TDD/LTE-FDD//EDGE. It supports a maximum 10Mbps downlink rate and a 5Mbps uplink rate.

The A7670 series adopts an LGA form factor and is compatible with SIM7000/SIM7070 series(NB/Cat Modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

The A7670 series supports multiple built-in network protocols, supports drivers for main operation systems(USB driver for Windows, Linux, and Android, etc.), and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

Meanwhile, the A7670series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, and GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc.

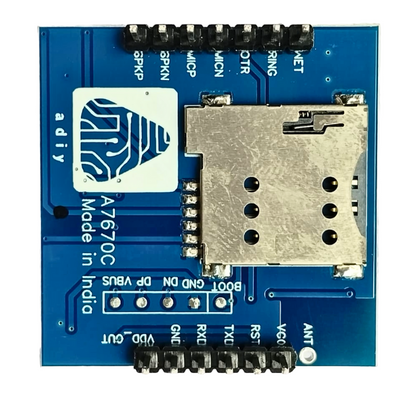

Pinout:

Features:

• Serial interface
• Based on the SIMCOM A7670C LTE modem
• Supports LTE-TDD/LTE-FDD wireless communication modes
• Maximum downlink rate of 10Mbps and uplink rate of 5Mbps
• Compact size

Applications:

• IoT applications
• Telematics
• Surveillance Devices
• POS, Industrial Routers
• Remote Diagnostics

Package Includes:

Specifications:
