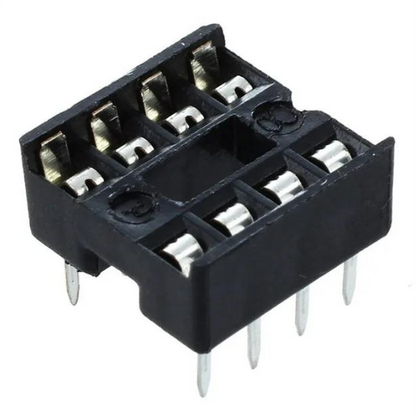

8 Pin DIP IC Socket Base Adaptor

Description

8 Pin IC Base

An 8-pin refers to a type of integrated circuit (IC) package that has 8 pins or leads for connecting the IC to a circuit board. These pins are typically arranged in a dual in-line package (DIP) configuration, with two rows of four pins each. 8-pin ICs are often small and simple ICs that are widely used in many electronic devices and appliances, such as timers, oscillators, and digital logic circuits, for example, , IC, etc.

The 8-pin DIP package is one of the most common IC package formats, and it is often used for ICs that have a small number of input and output pins. This package is relatively easy to work with, as the pins are widely spaced and can be easily inserted into a breadboard or soldered onto a circuit board. This is 8 Pin IC Base with a pin-to-pin spacing of 2.54mm and a width of 7.62mm (300 mil).

Features:

• 8 Pin DIP IC Socket Base Adaptor
• Molded notch for proper orientation
• Easy to insert and remove ICs
• Compatible with 8-pin ICs in dual in-line package (DIP) configuration
• Reliable and durable design

Applications:

• Circuit prototyping: Facilitates easy testing and swapping of 8-pin ICs during circuit development.
• Electronic projects: Useful for hobbyists and DIY enthusiasts working on projects involving timers, oscillators, and digital logic circuits.
• Breadboarding: Compatible with breadboards, making it convenient for temporary circuit setups and experimentation.
• Embedded systems development: Useful in the prototyping phase of embedded systems where different ICs may need testing.
• Robotics projects: Can be incorporated into robotics projects that involve 8-pin ICs for control and processing.
• Automation projects: Suitable for applications requiring small-scale automation using 8-pin ICs.

Package Includes:

• 1 x 8 Pin IC Base

Specifications:
