Description

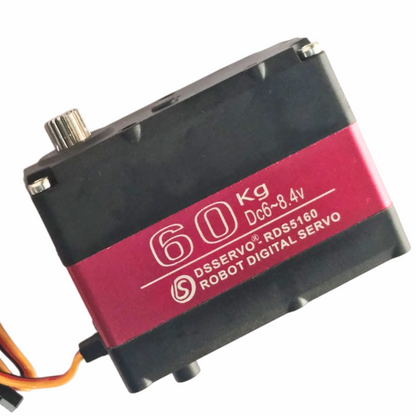

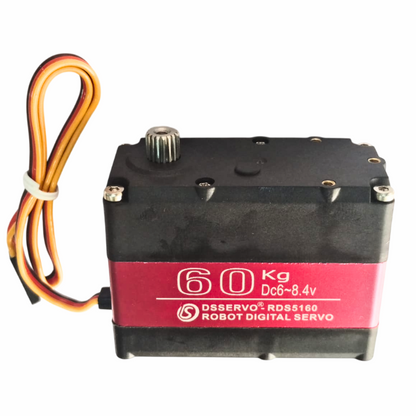

60kgcm Metal Gear Servo Motor Ultra Torque Quarter Scale
The Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor is a great choice for your projects! This strong and waterproof SSG metal geared servo motor gives you excellent performance, with 58kg/cm at 6V and 65kg/cm at 7.4V. It works well for many things, like airplanes, helicopters, BAJA cars, RC cars, and other RC models.
Features
- Durable all metal gear
- Programmable digital amplifier with soft drive
- Stable dual ball bearing design
- Bottom side axial mount hole
- Compatible with Futaba, JR, and Hitec systems
- Original factory product
- Low noise operation
- Operating angle: 180 degrees
- Maximum orientation angle: 180 or 270 degrees

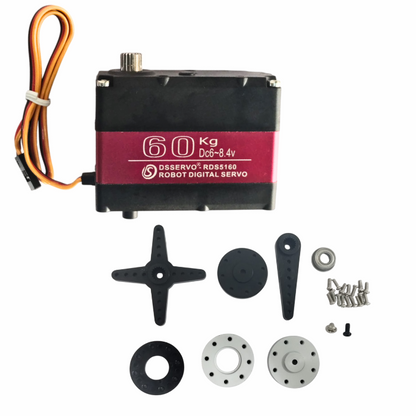

Package Includes:
- 1 x 60kgcm Metal Gear Servo Motor

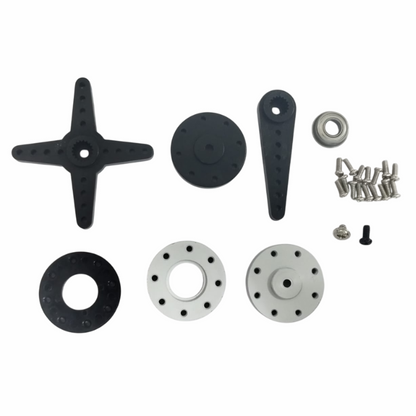

- 1 x Accessories Set
Specifications:
| Specification | Details |
|---|---|
| Item Type | Generic Servo Motor |
| Torque Rating (kg-cm) | 58 to 70 |
| Operating Voltage (VDC) | 6 ~ 8.4 |
| Operating Speed @6V | 0.17 sec/60 degrees |
| Operating Speed @7.4V | 0.15 sec/60 degrees |
| Operating Speed @8.4V | 0.13 sec/60 degrees |
| Stall Torque @6V (Kg-Cm) | 58 kg.cm |
| Stall Torque @7.4V (Kg-Cm) | 65 kg.cm |
| Stall Torque @8.4V (Kg-Cm) | 70 kg.cm |
| Operating Temperature (°C) | -15ºC to 70ºC |
| Storage Temperature (°C) | -30ºC to 80ºC |
| Cable Length (cm) | 32 cm |
| Dead Zone Setting | 3 µs |
| Gear Type | Metal |
| Required Pulse | 500 µs – 2500 µs |
| Length (mm) | 65 mm |
| Width (mm) | 30 mm |
| Height (mm) | 48 mm |
| Weight (g) | 160 g |
