Description

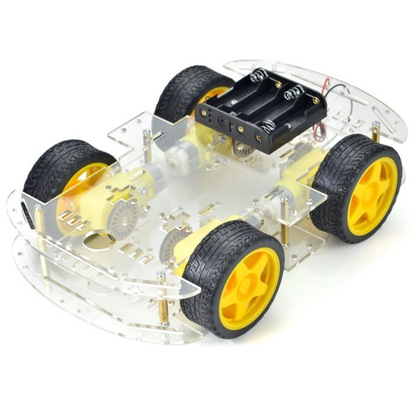

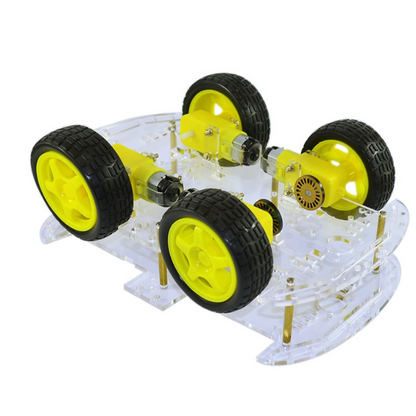

4WD Double Layer DIY Smart Car Plastic Chassis Kit (Longer Version)
The longer version of the 4WD Double Layer Smart Car Plastic Chassis Kit is equipped with four pairs of high-performance geared motors and wheels. In this 4WD car kit, each component is crafted for durability and precision, ensuring a top-tier robotic experience. The transparent chassis not only adds a sleek look but also offers enhanced visibility, making it easier to manage and optimize the placement of components on your robotic vehicle.
Features
- This DIY car kit is easy to assemble and disassemble.
- Durable components are designed to endure extreme terrain conditions.
- Transparent car chassis for a sleek look.
- Visually appealing design.
- Double-layer structure with numerous mounting holes and ample space.
- Simple to install various control panels and sensors.
- Perfect as an educational toy and ideal for DIY projects.
Package Includes
- 2 x Plastic Transparent car floor

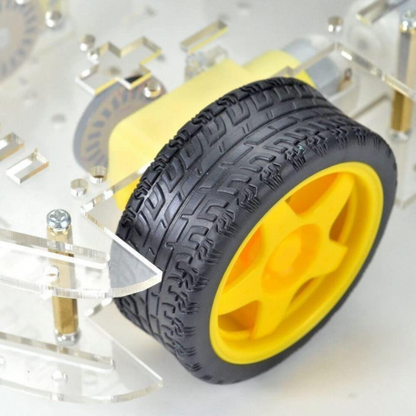

- 4 x High-Quality 65-mm Plastic wheels with Rubber Grip
- 4 x Dual shaft 200 RPM BO Gear Motor
- 4 x Coded Disk
- 8 x Acrylic Fasteners

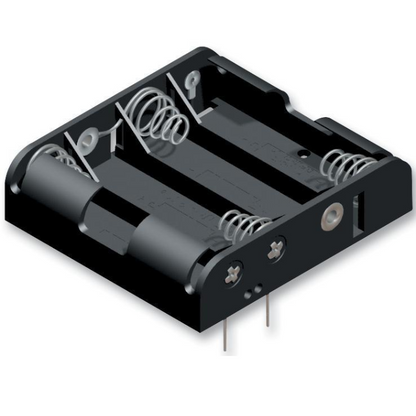

- 1 x 4-AAA Battery Holder
- 8 x Connecting Cable(Red and Black, Length: 15 cm each)
- 6 x M3 Brass Stand-Off
- 6 x M3 Cross-Head Bolt (Length: 8 mm )
- 8 x M3 Cross-Head Bolt (Length: 30 mm )
- 16 x M3 Nut
Specifications

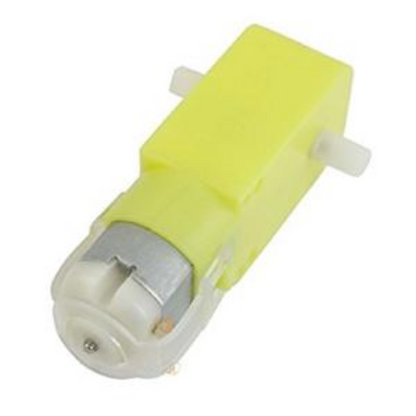

For BO Motor:
| Feature | Details |
|---|---|
| Operating Voltage | 3V~6V DC |
| Gear Ratio | 1:48 |
| No-load Speed (5V) | About 208RPM |
| Rated Torque | 0.8 Kg.cm @ 5V |
| Load Current | 170 mA (at 4.5V) |
| Size | 70 x 23 x 18 mm |
| Weight | 28g |
| Shaft Length | 10 mm |
| Shaft Type | 6 mm, Double-D |

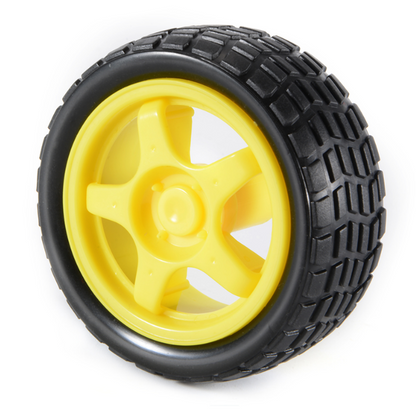

For Wheel:
| Feature | Details |
|---|---|
| Loading Capacity | Max 2.5Kg |
| Double D-hole for BO Motor | 6 mm |
| Weight | 34g |
| Wheel Diameter | 65 mm |
| Color | Black (Tyre), Yellow (Rim) |
| Wheel Width | 27 mm |
| Body Material | Plastic |
| Grip Material | Rubber |
