Description

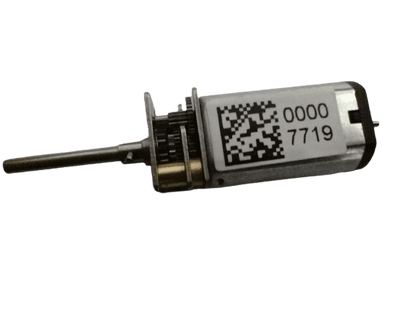

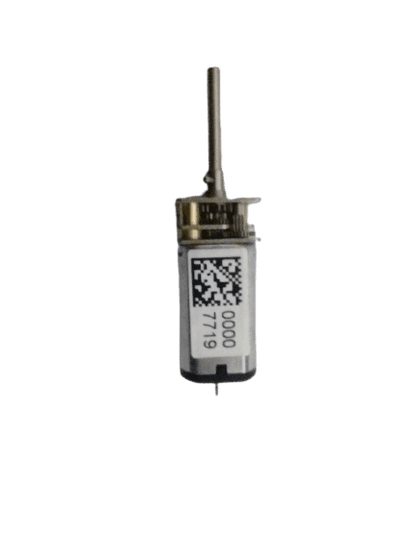

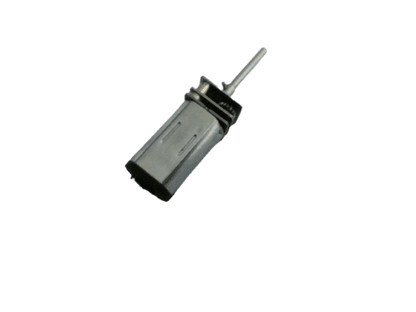

3V-9VDC 600RPM N20 Miniature Gear Motor with Metal Gear
This Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
The N20 Micro Gear 3V-9V 600 RPM DC Motor (High Torque) is a lightweight, high torque, and low RPM motor. It is equipped with a gearbox assembly so as to increase the torque of the motor. It has a cross-section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to another while carrying high loads.
This 600RPM N20 Micro (High Torque) has small volume, torsion big, all-metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
check out :
Package Includes:
1 x 3V-9VDC 600RPM N20 Miniature Gear Motor with Metal Gear
Specifications:
Operating Voltage (VDC) |
3 ~ 9 |
No-load Speed (RPM) |
600 |
Rated Speed (RPM) |
600 |
Dimensions |
50 x 12 x 10 mm |
Weight |
12gm |
