Description

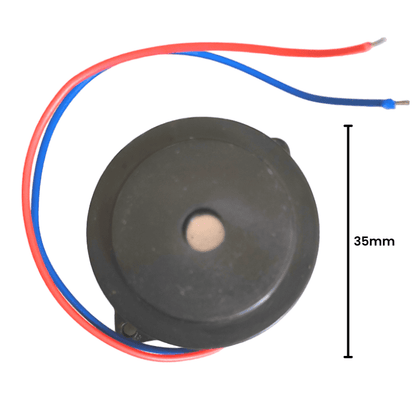

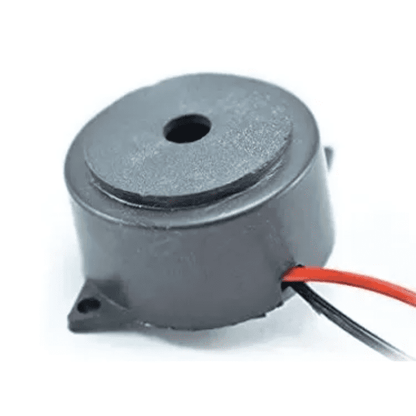

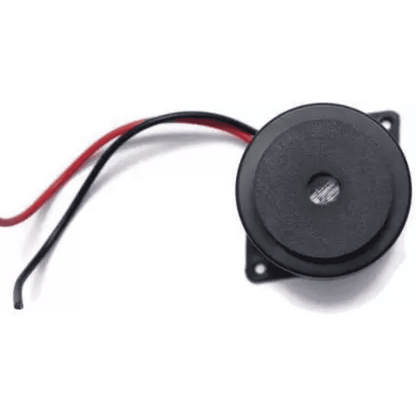

35mm Dual tone buzzer 1.5V to 27V DC
This is a 35mm big buzzer. It is an audio signalling device like a beeper or buzzer may be electromechanical piezoelectric or mechanical type. The main function of this is to convert the signal from audio to sound. Generally, it is powered through DC voltage and used in timers, alarm devices, printers, alarms, computers, etc. Based on the various designs, it can generate different sounds like alarms, music, bells & sirens.
This is an Active Buzzer for Motor Bike and Electronics Horn Projects. It is a Piezo buzzer as it has a Piezo Plate inside it. The diameter of this buzzer is 3.5cm and the height is 2.5cm.
Applications:
- Electrical alarms
- Educational purposes
- Security applications
- Electronic Metronomes
- Household applications
Package Includes:
- 1 x 35mm Dual tone buzzer
Specifications:
| Minimum sound level | 85db |
| Oscillation frequency | 4KHz ± 500Hz |
| Current consumption | Maximum 15mA |
| Operating voltage | 1.5 to 27 VDC |
| Tone | Continuous |
