Description

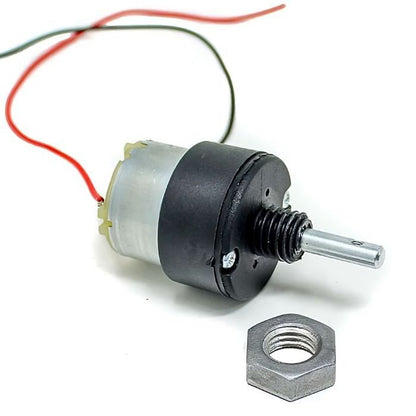

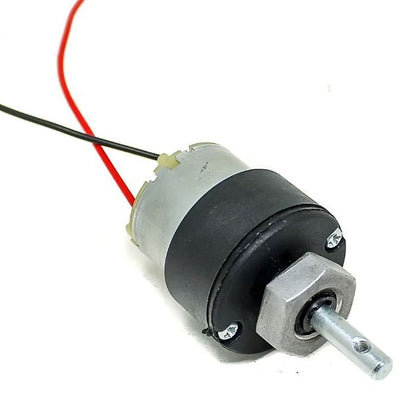

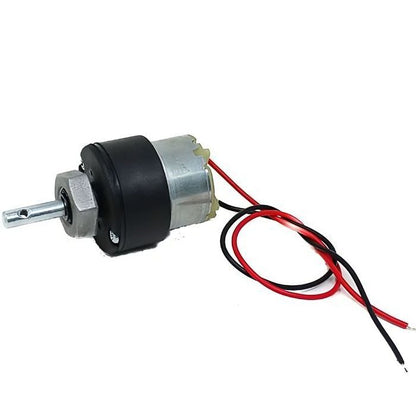

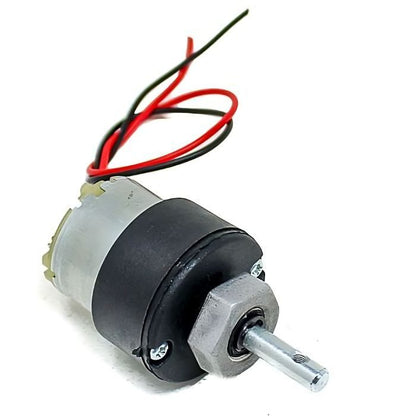

3.5 RPM DC Geared Motor
This is the 3.5RPM 12V geared Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the centre of their gearbox assembly.
These standard size are very easy to use. Also, you dont have to spend a lot of money to control motors with an or . TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
This DC Motor 3.5RPM 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the or any other mechanical assembly.
Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, and ideally suited for robotics and industrial applications.
Applications:
- Toy cars
- Windmill projects
- Basic Electronics projects
Package Includes:
- 1 x 3.5RPM 12V DC Motor
Specifications:
| Speed | 3.5 RPM |
| Voltage | 12V |
| Torque | 15.7 kg-cm |
| Phase | Single Phase |
| Shaft Diameter | 6mm |
| No load current | 70mA (max) |
