2.4 inch HMI UART DWIN IPS Display

Description

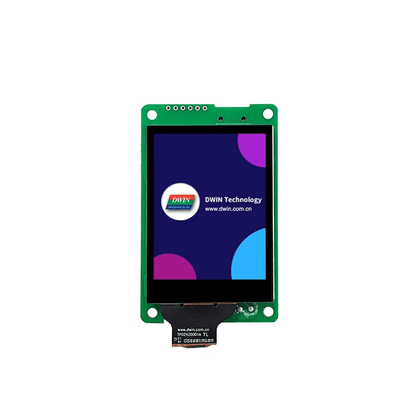

2.4inch 320×240 Resistive touch Display

2.4inch 320×240 Resistive touch Display is the go-to solution for projects requiring a reliable touch display. The resistive touch screen, vibrant 262K colors, and 320*240 pixel resolution provide a clear and precise interface.

With a lightweight design of 35g, it’s perfect for on-the-go applications. Developers can choose between DGUS II or TA for development, with a convenient 10Pin 1.0mm FCC connection wire.

The option to use SD card or DGUS TOOL for on-line serial port downloading adds to the flexibility of this display. The 18-bit 6R6G6B color scheme, TN TFT LCD, and LED backlight ensure an enhanced viewing experience, while the normal viewing angle of 70°/70°/50°/70° (L/R/U/D) caters to various user preferences. It’s an easy-to-use solution with DWIN DGUS V7.6 GUIs Development System, making it accessible even for those without coding skills.

Designed for versatility, this display is compatible with a range of applications, from robotics to IoT projects. It’s the ideal choice for developers and hobbyists looking for a reliable and user-friendly touch display solution.

Features:

• Based on self-designed T5L ASIC, 2.4 Inches, 262K Colors, 320*240 Pixel TFT LCD;
• Resistive touch screen
• 10Pin1.0mm FCC connection wire
• Two Development System: DGUS II/ TA(Instruction set);
• SD card or DGUS TOOL on-line serial port downloading ways;
• Net Weight 35g
• It is easy to use DWIN DGUS V7.6 GUIs Development,no coding skills required.

Package Includes:

• 1 x 2.4inch 320×240 Resistive touch Display
