Description

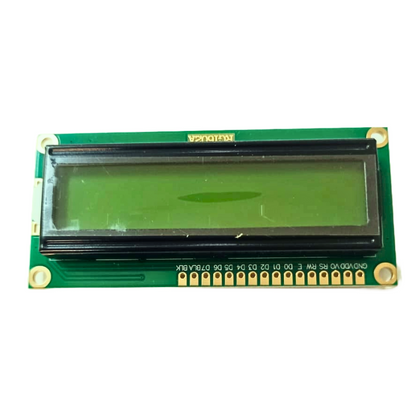

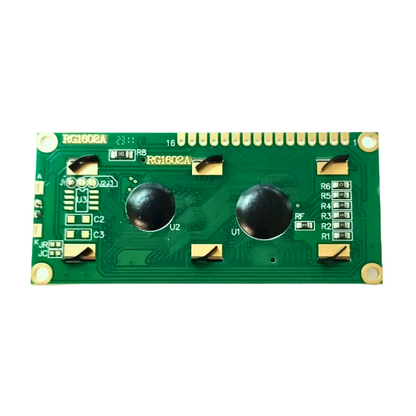

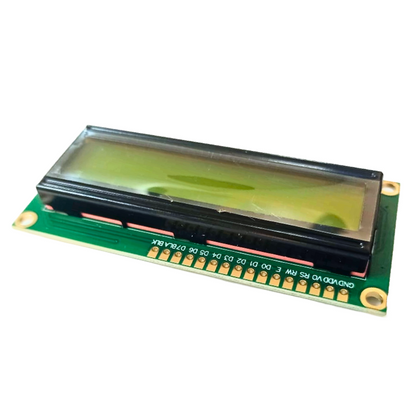

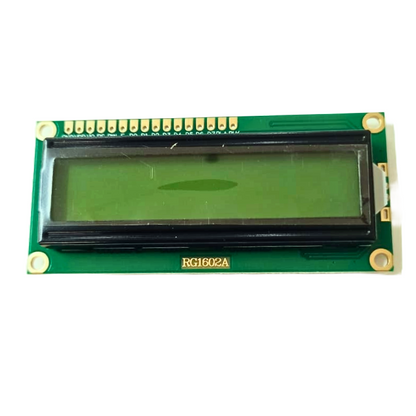

16×2 LCD Module (Green)
This is the brand new high-quality 16×2 LCD Green Backlight. It is a simple and cost-effective way to incorporate a 16×2 White on RGB Liquid Crystal Display into your project.
The LCD display module is 16 characters by 2 lines with very clear and high-contrast Black text against a Green background/backlight. This 16×2(S) LCD Green Backlight is ideal for Arduino-based projects. It is extremely simple to connect to an Arduino or other microcontrollers.
It can be easily interfaced to a microcontroller in either 8-bit mode or 4-bit mode depending on the number of microcontroller pins you have to spare. The LCD only displays a text output however this is a user interface for displaying information about battery power or distance to an object.
16×2 LCD Module Pinout:
APPLICATIONS:
- Thermometer
- IoT Projects
- Real-time clock
- Humidity Sensor
Package Includes:
- 1 x 16×2 Green LCD Module
Green LCD Module Specifications
| Specification | Details |
|---|---|
| Display Format | 16 x 2 dots |
| Controller | ST7920 or equivalent controller |
| Interface | 8-bit parallel interface or serial SPI modes |
| Power Supply Voltage | 5V |
| Operating Temperature | -20°C to +70°C |
| Package Dimensions | 5 x 4 x 2 cm |
| Package Weight | 50 grams |
