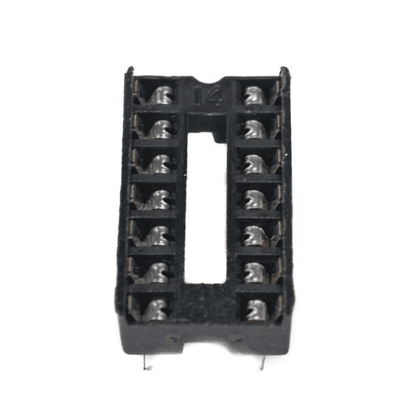

14 Pin Narrow IC Base – Pack of 5
A 14-pin Narrow is an electronic component used to connect an integrated circuit (IC) or other devices to a circuit board. It is designed to have a low profile, meaning that it has a small height above the circuit board, which allows it to be used in applications where space is limited.
The 14-pin IC Base has 14 pins, which are used to make electrical connections between the IC or device and the circuit board. It is commonly used in applications such as prototyping and repair, where it is necessary to remove and replace ICs or other devices easily.
The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming
Applications:
- Hobby projects
- Production testing
- Prototyping
Also check , available in a pack of 5, The IC base has a low profile design with a height of 0.6 inches or less above the circuit board. It features a molded notch for proper orientation and easy insertion and removal of ICs. The socket is suitable for educational settings, prototyping, production testing, and hobby projects.
Package Includes:
- 5 x 14 Pin Narrow IC Base
Specifications:
| Number of pins | 14 |
| Pitch | 0.1 inch |
| Row spacing | 0.3 inch |
| Height above the circuit board | 0.6 inch or less |
| Contact resistance | 20 milliohms per pin |
| Current rating | 1 amp per pin |
| Operating temperature | -55°C to +125°C |
| Lifetime | 20,000 insertions |
| Dimensions | 10x15x15mm |
| Weight | 5g |
